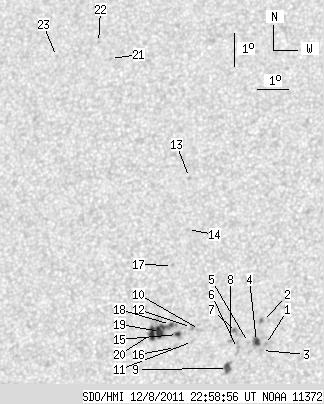

SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.82 | 77.23 | 13.66 | 40.90 | 8.27 | 42.37 | -18.97 | 65.91 | 0.3547 | 145.2 | 116.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.93 | 7.59 | 44.69 | -16.65 | 64.89 | 0.3151 | -974.0 | -814.2 | |
| 0.51 | 1.70 | 0.27 | 0.89 | 8.27 | 44.56 | -16.77 | 63.09 | 0.3217 | -827.0 | -884.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 7.41 | 44.57 | -16.77 | 65.56 | 0.3156 | -840.0 | -692.8 | |
| 4.26 | 5.54 | 2.23 | 2.89 | 7.68 | 44.40 | -16.93 | 64.99 | 0.3199 | -1096.3 | -887.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 7.65 | 44.15 | -17.18 | 65.39 | 0.3235 | -793.0 | -653.5 | |
| 0.00 | 4.86 | 0.00 | 2.54 | 7.47 | 43.82 | -17.52 | 66.29 | 0.3274 | -768.0 | -601.9 | |
| 0.00 | 4.01 | 0.00 | 2.10 | 7.94 | 43.77 | -17.57 | 65.02 | 0.3313 | -790.0 | -702.9 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 7.71 | 43.59 | -17.75 | 65.89 | 0.3324 | -582.0 | -392.4 | |
| 4.35 | 6.56 | 2.28 | 3.44 | 6.87 | 43.53 | -17.81 | 68.31 | 0.3282 | -990.5 | -651.3 | |
| 0.00 | 2.81 | 0.00 | 1.49 | 8.03 | 42.60 | -18.73 | 66.11 | 0.3494 | 343.0 | 367.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 7.68 | 42.40 | -18.94 | 67.28 | 0.3502 | 770.0 | 652.4 | |
| 0.00 | 2.90 | 0.00 | 1.53 | 8.09 | 42.35 | -18.99 | 66.23 | 0.3536 | 820.0 | 734.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.60 | 41.99 | -19.34 | 55.86 | 0.3922 | 915.0 | 656.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 11.03 | 42.05 | -19.29 | 59.32 | 0.3786 | -753.0 | -668.4 | |
| 2.22 | 4.52 | 1.17 | 2.40 | 7.89 | 41.91 | -19.42 | 67.23 | 0.3588 | 1084.4 | 768.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 7.50 | 41.87 | -19.47 | 68.29 | 0.3572 | 851.0 | 622.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 9.95 | 41.64 | -19.70 | 62.36 | 0.3763 | 773.0 | 637.3 | |
| 1.36 | 28.89 | 0.72 | 15.38 | 8.18 | 41.68 | -19.66 | 66.70 | 0.3641 | 862.5 | 694.1 | |
| 7.41 | -18.00 | 3.95 | -18.00 | 7.98 | 41.37 | -19.96 | 67.54 | 0.3675 | 1181.4 | 999999 | |
| 5.71 | -18.00 | 3.04 | -18.00 | 7.92 | 41.12 | -20.21 | 67.93 | 0.3709 | 864.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 16.23 | 39.06 | -22.28 | 52.38 | 0.4614 | 774.0 | 630.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 16.72 | 38.60 | -22.74 | 52.04 | 0.4714 | 675.0 | 538.9 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 16.29 | 37.24 | -24.09 | 54.30 | 0.4845 | 600.0 | 473.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
