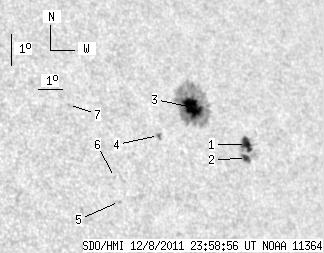

SDO HMI 2011-12-08 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.31 | 133.11 | 25.98 | 94.70 | 18.43 | 103.46 | 42.67 | 296.25 | 0.7193 | -198.3 | -217.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.46 | 13.21 | 6.89 | 9.61 | 17.55 | 105.24 | 44.45 | 294.37 | 0.7354 | 768.7 | 587.2 | |
| 4.18 | 8.01 | 3.03 | 5.82 | 17.12 | 105.10 | 44.32 | 293.85 | 0.7324 | 739.3 | 209.9 | |
| 21.39 | 105.76 | 15.18 | 75.14 | 18.70 | 103.27 | 42.49 | 296.68 | 0.7184 | -970.9 | -292.2 | |
| 1.28 | 2.98 | 0.88 | 2.05 | 17.82 | 101.59 | 40.81 | 296.26 | 0.6962 | -733.0 | -665.2 | |
| 0.00 | 1.19 | 0.00 | 0.79 | 15.78 | 99.51 | 38.72 | 294.39 | 0.6633 | 723.0 | 599.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 16.52 | 99.48 | 38.70 | 295.45 | 0.6662 | 658.0 | 529.1 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 18.78 | 98.23 | 37.45 | 299.29 | 0.6624 | 720.0 | 572.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
