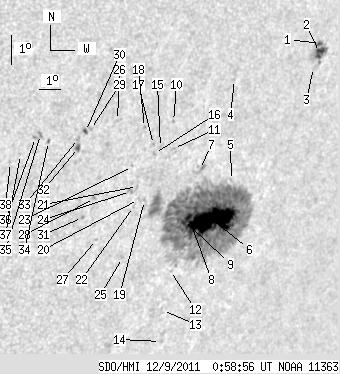

SDO HMI 2011-12-09 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.06 | 598.72 | 65.01 | 476.16 | -22.53 | 108.08 | 47.85 | 240.81 | 0.7865 | 475.8 | 344.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 23.01 | 1.48 | 19.01 | -17.33 | 111.28 | 51.04 | 248.19 | 0.8018 | 747.9 | 481.7 | |
| 7.33 | -1.00 | 6.07 | -1.00 | -17.61 | 111.34 | 51.10 | 247.87 | 0.8031 | 797.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.99 | -18.07 | 111.23 | 50.99 | 247.27 | 0.8032 | 175.0 | 135.1 | |
| 0.00 | 1.11 | 0.00 | 0.85 | -18.45 | 107.59 | 47.36 | 245.67 | 0.7682 | -590.0 | -449.3 | |
| 0.00 | 1.62 | 0.00 | 1.30 | -21.63 | 108.74 | 48.51 | 242.17 | 0.7897 | 442.0 | 364.5 | |
| 64.69 | 523.05 | 52.09 | 418.16 | -22.87 | 108.36 | 48.12 | 240.52 | 0.7903 | 970.1 | 401.5 | |
| 0.00 | 6.82 | 0.00 | 5.29 | -21.28 | 107.08 | 46.84 | 241.97 | 0.7725 | 246.0 | 280.0 | |
| 2.64 | -6.00 | 2.08 | -6.00 | -22.78 | 107.21 | 46.98 | 240.19 | 0.7792 | 1192.1 | 999999 | |
| 0.60 | -6.00 | 0.47 | -6.00 | -22.90 | 107.04 | 46.80 | 239.96 | 0.7780 | 1068.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.76 | -19.76 | 105.30 | 45.07 | 243.16 | 0.7491 | -589.0 | -501.9 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -20.61 | 105.62 | 45.39 | 242.21 | 0.7555 | -544.0 | -463.2 | |
| 0.00 | 0.85 | 0.00 | 0.68 | -24.52 | 107.18 | 46.95 | 238.08 | 0.7856 | 356.0 | 359.6 | |
| 0.00 | 1.53 | 0.00 | 1.24 | -25.82 | 107.46 | 47.23 | 236.66 | 0.7932 | -580.0 | -451.2 | |
| 0.00 | 1.19 | 0.00 | 0.98 | -26.85 | 107.92 | 47.69 | 235.66 | 0.8013 | 408.0 | 352.4 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -20.58 | 105.02 | 44.79 | 242.01 | 0.7493 | -636.0 | -479.9 | |
| 0.00 | 1.53 | 0.00 | 1.14 | -20.77 | 104.83 | 44.59 | 241.69 | 0.7480 | -567.0 | -434.5 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -20.48 | 104.68 | 44.44 | 241.98 | 0.7454 | -635.0 | -505.3 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -19.95 | 104.09 | 43.86 | 242.42 | 0.7371 | -554.0 | -471.6 | |
| 0.00 | 1.45 | 0.00 | 1.09 | -22.26 | 104.97 | 44.73 | 239.88 | 0.7554 | -225.0 | -193.0 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -22.23 | 104.68 | 44.45 | 239.79 | 0.7524 | -429.0 | -289.8 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -21.82 | 104.47 | 44.24 | 240.22 | 0.7486 | -414.0 | -301.6 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -22.45 | 104.55 | 44.32 | 239.45 | 0.7520 | -318.0 | -251.3 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -21.18 | 104.01 | 43.77 | 240.81 | 0.7413 | -437.0 | -382.5 | |
| 0.00 | 2.90 | 0.00 | 2.15 | -21.98 | 104.22 | 43.99 | 239.91 | 0.7468 | -434.0 | -473.1 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -24.10 | 104.75 | 44.51 | 237.52 | 0.7610 | 601.0 | 477.0 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -19.73 | 102.85 | 42.61 | 242.16 | 0.7231 | -717.0 | -555.2 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -23.51 | 103.33 | 43.10 | 237.57 | 0.7446 | -404.0 | -323.8 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -22.20 | 102.73 | 42.50 | 238.93 | 0.7326 | -830.0 | -652.4 | |
| 0.00 | 1.70 | 0.00 | 1.20 | -20.01 | 101.79 | 41.56 | 241.30 | 0.7130 | -807.0 | -686.0 | |
| 1.79 | 2.13 | 1.26 | 1.50 | -20.07 | 101.60 | 41.37 | 241.13 | 0.7112 | -783.2 | -748.8 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -22.81 | 102.44 | 42.21 | 238.02 | 0.7324 | -717.0 | -651.1 | |
| 2.22 | 3.15 | 1.56 | 2.22 | -20.58 | 101.47 | 41.24 | 240.41 | 0.7121 | -658.2 | -706.5 | |
| 0.00 | 2.05 | 0.00 | 1.43 | -20.30 | 101.38 | 41.15 | 240.73 | 0.7098 | -754.0 | -639.7 | |
| 0.00 | 1.79 | 0.00 | 1.23 | -20.39 | 100.16 | 39.93 | 240.00 | 0.6971 | -505.0 | -455.0 | |
| 0.00 | 2.05 | 0.00 | 1.40 | -20.17 | 99.77 | 39.53 | 240.09 | 0.6917 | -731.0 | -628.1 | |
| 0.00 | 2.05 | 0.00 | 1.40 | -20.26 | 99.59 | 39.36 | 239.87 | 0.6902 | -796.0 | -672.9 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -20.80 | 99.14 | 38.91 | 238.91 | 0.6880 | -743.0 | -639.1 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -21.05 | 98.82 | 38.58 | 238.39 | 0.6858 | -634.0 | -527.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
