SDO HMI 2011-12-09 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.74 | 54.71 | 18.09 | 66.61 | 8.68 | 354.60 | -65.64 | 80.44 | 0.9145 | -281.3 | -68.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

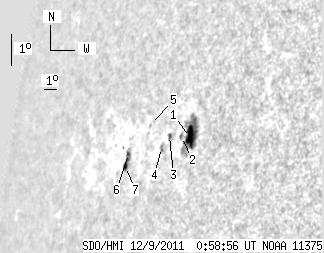

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.23 | 37.50 | 11.93 | 43.82 | 8.83 | 355.71 | -64.52 | 80.20 | 0.9071 | -655.0 | -225.1 | |
| 0.00 | 2.13 | 0.00 | 2.55 | 8.86 | 355.06 | -65.17 | 80.22 | 0.9117 | -153.0 | -10.8 | |
| 1.19 | 2.81 | 1.47 | 3.47 | 8.89 | 354.17 | -66.06 | 80.25 | 0.9179 | -194.4 | -160.3 | |
| 0.00 | 2.90 | 0.00 | 3.64 | 8.53 | 353.70 | -66.54 | 80.68 | 0.9210 | 370.0 | 142.2 | |
| 0.00 | 0.68 | 0.00 | 0.90 | 9.22 | 352.58 | -67.65 | 80.01 | 0.9286 | 334.0 | 308.2 | |
| 0.85 | 8.69 | 1.20 | 12.23 | 8.36 | 351.12 | -69.12 | 81.03 | 0.9374 | 606.8 | 453.2 | |
| 2.47 | -6.00 | 3.49 | -6.00 | 7.97 | 351.01 | -69.22 | 81.45 | 0.9379 | 254.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
