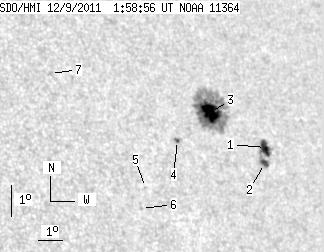

SDO HMI 2011-12-09 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.67 | 127.34 | 24.53 | 92.16 | 18.46 | 103.39 | 43.70 | 295.88 | 0.7306 | -237.6 | -224.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.61 | 19.35 | 6.40 | 14.35 | 17.60 | 105.30 | 45.62 | 294.01 | 0.7481 | 698.8 | 518.4 | |
| 4.01 | -1.00 | 2.96 | -1.00 | 17.11 | 105.10 | 45.42 | 293.45 | 0.7443 | 702.5 | 999999 | |
| 19.43 | 101.26 | 14.04 | 73.22 | 18.69 | 103.25 | 43.56 | 296.22 | 0.7300 | -974.3 | -308.2 | |
| 1.62 | 2.81 | 1.13 | 1.97 | 17.81 | 101.58 | 41.89 | 295.78 | 0.7083 | -744.1 | -608.6 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 16.36 | 99.87 | 40.19 | 294.54 | 0.6830 | 621.0 | 500.8 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 15.71 | 99.55 | 39.87 | 293.78 | 0.6767 | 650.0 | 459.3 | |
| 0.00 | 1.96 | 0.00 | 1.30 | 19.90 | 97.01 | 37.32 | 300.92 | 0.6669 | 157.0 | 247.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
