SDO HMI 2011-12-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.65 | 562.86 | 72.71 | 456.89 | -22.66 | 108.04 | 48.91 | 241.08 | 0.7967 | 531.1 | 333.6 | |
|
previous
or next observation for the same group /

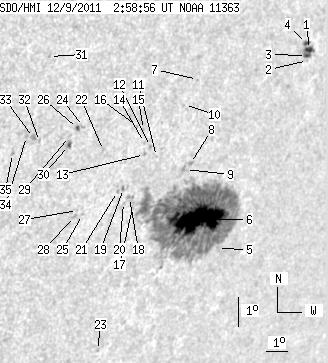

back to the solar disc SDO HMI 2011-12-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.32 | 14.07 | 2.82 | 11.91 | -17.56 | 111.43 | 52.30 | 248.27 | 0.8143 | 751.4 | 610.2 | |
| 0.00 | 1.11 | 0.00 | 0.94 | -17.90 | 111.47 | 52.34 | 247.87 | 0.8154 | 421.0 | 355.8 | |
| 0.85 | -1.00 | 0.72 | -1.00 | -17.74 | 111.36 | 52.22 | 248.03 | 0.8140 | 809.1 | 999999 | |
| 2.30 | -1.00 | 1.94 | -1.00 | -17.37 | 111.21 | 52.07 | 248.43 | 0.8117 | 737.9 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.45 | -23.85 | 109.75 | 50.61 | 240.29 | 0.8161 | -265.0 | -237.8 | |
| 80.13 | 506.60 | 65.77 | 413.40 | -22.92 | 108.26 | 49.13 | 240.86 | 0.7997 | 966.5 | 385.7 | |
| 0.00 | 0.68 | 0.00 | 0.52 | -18.49 | 106.38 | 47.24 | 245.59 | 0.7670 | -437.0 | -398.4 | |
| 0.00 | 2.30 | 0.00 | 1.82 | -21.13 | 107.10 | 47.96 | 242.58 | 0.7828 | 204.0 | 214.7 | |
| 0.00 | 2.56 | 0.00 | 2.02 | -21.32 | 106.95 | 47.81 | 242.29 | 0.7819 | 327.0 | 184.3 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -19.27 | 106.07 | 46.93 | 244.50 | 0.7664 | -584.0 | -533.0 | |
| 0.00 | 0.68 | 0.00 | 0.52 | -20.91 | 105.42 | 46.28 | 242.21 | 0.7655 | -330.0 | -255.6 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -20.59 | 105.02 | 45.88 | 242.45 | 0.7604 | -557.0 | -500.2 | |
| 0.00 | 1.28 | 0.00 | 0.97 | -20.85 | 104.85 | 45.71 | 242.06 | 0.7595 | -468.0 | -413.2 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -20.47 | 104.70 | 45.56 | 242.48 | 0.7566 | -629.0 | -569.1 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -20.06 | 104.50 | 45.36 | 242.92 | 0.7531 | -479.0 | -338.5 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -19.96 | 104.20 | 45.06 | 242.91 | 0.7496 | -607.0 | -536.3 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -22.53 | 104.99 | 45.85 | 240.04 | 0.7674 | -44.0 | -45.4 | |
| 0.00 | 2.81 | 0.00 | 2.15 | -22.21 | 104.72 | 45.58 | 240.32 | 0.7635 | -384.0 | -253.9 | |
| 0.00 | 1.88 | 0.00 | 1.42 | -21.93 | 104.33 | 45.19 | 240.50 | 0.7585 | -599.0 | -471.8 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -22.37 | 104.51 | 45.37 | 240.03 | 0.7620 | -145.0 | -166.8 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -22.02 | 104.09 | 44.96 | 240.29 | 0.7565 | -327.0 | -366.3 | |
| 0.00 | 1.28 | 0.00 | 0.94 | -20.72 | 102.97 | 43.83 | 241.44 | 0.7399 | -676.0 | -535.8 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -27.19 | 105.60 | 46.47 | 234.74 | 0.7920 | 510.0 | 495.2 | |
| 0.00 | 1.28 | 0.00 | 0.92 | -19.96 | 101.83 | 42.70 | 241.91 | 0.7249 | -681.0 | -635.0 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -22.76 | 102.82 | 43.68 | 238.81 | 0.7469 | -500.0 | -384.9 | |
| 1.45 | 1.88 | 1.03 | 1.34 | -20.03 | 101.60 | 42.46 | 241.72 | 0.7226 | -757.8 | -709.2 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -22.63 | 102.55 | 43.41 | 238.84 | 0.7437 | -665.0 | -573.1 | |
| 0.00 | 1.79 | 0.00 | 1.32 | -22.82 | 102.49 | 43.36 | 238.57 | 0.7439 | -534.0 | -485.4 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -20.28 | 101.34 | 42.20 | 241.27 | 0.7209 | -703.0 | -527.7 | |
| 0.60 | 2.98 | 0.43 | 2.13 | -20.56 | 101.39 | 42.26 | 240.93 | 0.7227 | -702.0 | -640.3 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -17.78 | 99.74 | 40.60 | 243.87 | 0.6927 | -631.0 | -502.9 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -20.44 | 100.13 | 40.99 | 240.49 | 0.7086 | -609.0 | -521.2 | |
| 0.00 | 3.07 | 0.00 | 2.14 | -20.31 | 99.83 | 40.70 | 240.51 | 0.7049 | -607.0 | -615.0 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -20.28 | 99.53 | 40.40 | 240.40 | 0.7015 | -644.0 | -538.6 | |
| 0.00 | 1.28 | 0.00 | 0.88 | -20.81 | 99.12 | 39.99 | 239.48 | 0.6997 | -725.0 | -640.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
