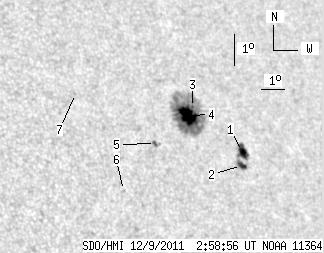

SDO HMI 2011-12-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.87 | 122.07 | 25.69 | 89.24 | 18.48 | 103.46 | 44.32 | 295.65 | 0.7374 | -226.0 | -272.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.72 | 18.33 | 7.30 | 13.73 | 17.57 | 105.29 | 46.15 | 293.79 | 0.7537 | 666.6 | 577.6 | |
| 3.92 | -1.00 | 2.93 | -1.00 | 17.14 | 105.10 | 45.96 | 293.30 | 0.7503 | 698.8 | 999999 | |
| 1.62 | 98.97 | 1.19 | 72.18 | 18.94 | 103.53 | 44.39 | 296.21 | 0.7398 | -351.1 | -332.5 | |
| 18.84 | -3.00 | 13.73 | -3.00 | 18.69 | 103.22 | 44.09 | 296.01 | 0.7357 | -980.0 | 999999 | |
| 0.77 | 2.81 | 0.54 | 1.99 | 17.81 | 101.58 | 42.44 | 295.55 | 0.7145 | -758.0 | -626.8 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 16.35 | 99.85 | 40.72 | 294.32 | 0.6892 | 550.0 | 508.1 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 19.37 | 98.72 | 39.58 | 298.97 | 0.6895 | 562.0 | 418.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
