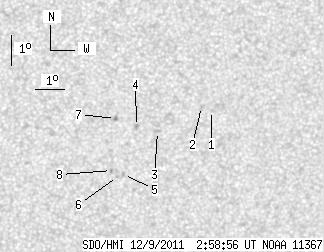

SDO HMI 2011-12-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.36 | 0.00 | 7.07 | -26.15 | 74.62 | 15.49 | 208.63 | 0.5027 | -282.1 | -245.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.49 | -25.28 | 76.81 | 17.67 | 212.83 | 0.5085 | 598.0 | 464.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.15 | 76.45 | 17.31 | 212.46 | 0.5039 | 726.0 | 476.7 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -25.96 | 75.06 | 15.93 | 209.48 | 0.5033 | 807.0 | 482.9 | |
| 0.00 | 2.22 | 0.00 | 1.26 | -25.80 | 74.33 | 15.19 | 208.54 | 0.4958 | -919.0 | -667.2 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -27.39 | 74.10 | 14.96 | 206.56 | 0.5147 | -770.0 | -634.1 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -27.45 | 73.90 | 14.76 | 206.20 | 0.5142 | -773.0 | -703.4 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -25.54 | 73.58 | 14.44 | 207.65 | 0.4870 | -1063.0 | -814.7 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -27.25 | 73.66 | 14.53 | 206.04 | 0.5101 | -863.0 | -679.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
