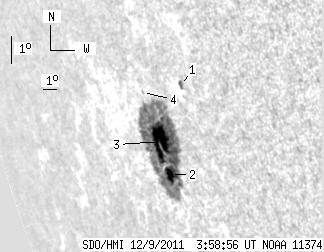

SDO HMI 2011-12-09 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.95 | 237.58 | 43.36 | 294.73 | -17.02 | 353.31 | -65.28 | 108.57 | 0.9180 | 662.7 | 148.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.15 | 0.00 | 3.55 | -15.13 | 355.67 | -62.92 | 106.84 | 0.8999 | -618.0 | -465.1 | |
| 6.73 | 233.24 | 8.40 | 289.69 | -17.87 | 353.26 | -65.33 | 109.49 | 0.9192 | 659.5 | 156.7 | |
| 28.22 | -2.00 | 34.96 | -2.00 | -16.85 | 353.29 | -65.30 | 108.39 | 0.9180 | 712.2 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.49 | -15.34 | 352.83 | -65.76 | 106.70 | 0.9198 | 240.0 | 169.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
