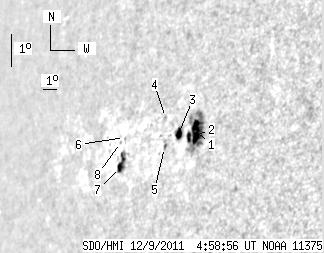

SDO HMI 2011-12-09 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.89 | 69.82 | 23.48 | 78.22 | 8.82 | 354.60 | -63.44 | 80.09 | 0.8987 | -219.7 | -87.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.49 | 47.48 | 11.27 | 51.05 | 9.05 | 355.87 | -62.17 | 79.73 | 0.8895 | -689.3 | -285.0 | |
| 2.64 | -1.00 | 2.87 | -1.00 | 8.87 | 355.53 | -62.51 | 79.97 | 0.8920 | -203.6 | 999999 | |
| 3.84 | 6.91 | 4.28 | 7.69 | 8.99 | 354.77 | -63.28 | 79.90 | 0.8980 | -230.4 | 52.0 | |
| 0.00 | 1.45 | 0.00 | 1.68 | 9.47 | 353.72 | -64.33 | 79.46 | 0.9061 | 258.0 | 210.1 | |
| 0.00 | 1.36 | 0.00 | 1.56 | 8.57 | 353.94 | -64.10 | 80.43 | 0.9039 | -288.0 | -187.8 | |
| 0.00 | 0.68 | 0.00 | 0.88 | 8.88 | 350.91 | -67.13 | 80.33 | 0.9252 | 289.0 | 290.2 | |
| 3.92 | 10.83 | 5.06 | 13.92 | 7.98 | 350.92 | -67.12 | 81.30 | 0.9247 | 529.5 | 547.4 | |
| 0.00 | 1.11 | 0.00 | 1.44 | 8.73 | 350.65 | -67.39 | 80.51 | 0.9268 | 364.0 | 276.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
