SDO HMI 2011-12-09 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.27 | 533.27 | 73.15 | 446.99 | -22.69 | 107.87 | 50.37 | 241.56 | 0.8101 | 575.7 | 294.6 | |
|
previous
or next observation for the same group /

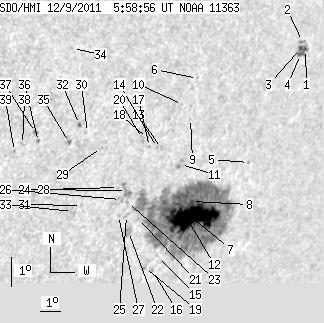

back to the solar disc SDO HMI 2011-12-09 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 8.95 | 1.13 | 7.89 | -17.63 | 111.55 | 54.05 | 248.64 | 0.8306 | 470.3 | 625.1 | |
| 0.00 | 2.05 | 0.00 | 1.80 | -17.39 | 111.28 | 53.78 | 248.87 | 0.8276 | 754.0 | 640.0 | |
| 1.36 | -1.00 | 1.20 | -1.00 | -17.60 | 111.27 | 53.77 | 248.61 | 0.8280 | 821.1 | 999999 | |
| 2.22 | -1.00 | 1.95 | -1.00 | -17.79 | 111.35 | 53.85 | 248.41 | 0.8291 | 695.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -21.18 | 110.23 | 52.73 | 244.12 | 0.8270 | -286.0 | -265.8 | |
| 0.00 | 0.85 | 0.00 | 0.68 | -18.54 | 106.50 | 49.00 | 246.13 | 0.7847 | -441.0 | -355.7 | |
| 77.75 | 465.13 | 65.96 | 392.67 | -22.93 | 108.19 | 50.69 | 241.40 | 0.8138 | 976.9 | 354.5 | |
| 1.02 | -7.00 | 0.86 | -7.00 | -22.42 | 107.93 | 50.43 | 241.92 | 0.8099 | 1182.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.69 | -19.79 | 106.67 | 49.17 | 244.65 | 0.7901 | -336.0 | -270.0 | |
| 0.00 | 0.51 | 0.00 | 0.41 | -19.35 | 106.10 | 48.60 | 245.00 | 0.7832 | -653.0 | -594.2 | |
| 0.00 | 5.12 | 0.00 | 4.17 | -21.24 | 106.82 | 49.32 | 242.94 | 0.7959 | 43.0 | 104.0 | |
| 1.28 | -7.00 | 1.06 | -7.00 | -22.49 | 107.31 | 49.81 | 241.63 | 0.8044 | 1031.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.08 | -20.74 | 105.68 | 48.18 | 243.15 | 0.7834 | -261.0 | -257.1 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -20.71 | 105.47 | 47.97 | 243.12 | 0.7813 | -440.0 | -311.8 | |
| 0.00 | 0.85 | 0.00 | 0.71 | -24.19 | 107.13 | 49.63 | 239.55 | 0.8084 | 513.0 | 407.1 | |
| 0.00 | 0.85 | 0.00 | 0.72 | -24.65 | 107.12 | 49.62 | 239.02 | 0.8099 | 428.0 | 341.1 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -20.67 | 105.08 | 47.58 | 243.02 | 0.7774 | -478.0 | -415.0 | |
| 0.00 | 1.88 | 0.00 | 1.46 | -20.42 | 104.88 | 47.39 | 243.25 | 0.7746 | -424.0 | -387.5 | |
| 0.00 | 1.71 | 0.00 | 1.42 | -24.55 | 106.67 | 49.17 | 238.96 | 0.8055 | 444.0 | 347.9 | |
| 0.00 | 2.13 | 0.00 | 1.65 | -20.42 | 104.65 | 47.15 | 243.17 | 0.7723 | -469.0 | -522.4 | |
| 0.00 | 1.28 | 0.00 | 1.03 | -22.97 | 105.58 | 48.08 | 240.42 | 0.7901 | 384.0 | 361.9 | |
| 0.00 | 6.56 | 0.00 | 5.26 | -23.38 | 105.30 | 47.80 | 239.81 | 0.7889 | 165.0 | 106.1 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -22.45 | 104.82 | 47.32 | 240.74 | 0.7810 | -132.0 | -63.5 | |
| 0.00 | 7.42 | 0.00 | 5.82 | -22.07 | 104.60 | 47.10 | 241.12 | 0.7776 | -321.0 | -277.9 | |
| 0.00 | 2.22 | 0.00 | 1.76 | -22.87 | 104.96 | 47.46 | 240.29 | 0.7839 | 146.0 | 132.0 | |
| 0.00 | 2.22 | 0.00 | 1.74 | -22.36 | 104.44 | 46.94 | 240.71 | 0.7771 | -220.0 | -283.3 | |
| 0.00 | 1.11 | 0.00 | 0.87 | -22.87 | 104.58 | 47.08 | 240.14 | 0.7803 | -265.0 | -206.5 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -21.98 | 104.18 | 46.68 | 241.08 | 0.7732 | -567.0 | -444.4 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -20.71 | 102.88 | 45.39 | 242.13 | 0.7556 | -393.0 | -474.2 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -20.23 | 102.08 | 44.58 | 242.39 | 0.7456 | -542.0 | -536.4 | |
| 0.00 | 1.28 | 0.00 | 0.97 | -22.55 | 102.72 | 45.22 | 239.76 | 0.7611 | -469.0 | -370.2 | |
| 1.02 | 1.19 | 0.75 | 0.88 | -19.98 | 101.64 | 44.14 | 242.53 | 0.7400 | -674.2 | -649.0 | |
| 0.00 | 4.01 | 0.00 | 3.03 | -22.74 | 102.39 | 44.89 | 239.38 | 0.7587 | -410.0 | -396.1 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -17.61 | 100.56 | 43.06 | 245.18 | 0.7194 | -637.0 | -570.3 | |
| 0.00 | 1.62 | 0.00 | 1.19 | -20.55 | 101.40 | 43.90 | 241.70 | 0.7398 | -665.0 | -611.9 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -20.52 | 100.04 | 42.54 | 241.14 | 0.7254 | -609.0 | -525.9 | |
| 0.34 | 1.28 | 0.24 | 0.91 | -20.23 | 99.82 | 42.32 | 241.40 | 0.7218 | -728.0 | -679.0 | |
| 0.00 | 1.79 | 0.00 | 1.27 | -20.61 | 99.39 | 41.89 | 240.71 | 0.7190 | -614.0 | -560.4 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -20.83 | 99.13 | 41.63 | 240.30 | 0.7171 | -726.0 | -589.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
