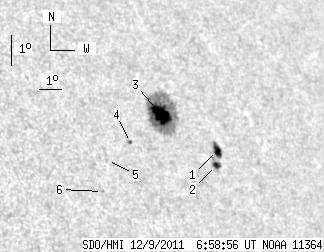

SDO HMI 2011-12-09 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.97 | 115.34 | 24.45 | 87.68 | 18.45 | 103.43 | 46.48 | 294.82 | 0.7601 | -320.5 | -216.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.50 | 9.04 | 5.88 | 7.08 | 17.56 | 105.39 | 48.44 | 293.02 | 0.7774 | 633.4 | 412.6 | |
| 3.50 | 6.22 | 2.72 | 4.85 | 17.09 | 105.18 | 48.23 | 292.50 | 0.7739 | 660.0 | 591.8 | |
| 19.86 | 96.76 | 15.04 | 73.36 | 18.67 | 103.21 | 46.26 | 295.17 | 0.7586 | -950.4 | -270.1 | |
| 1.11 | 1.36 | 0.81 | 1.00 | 17.79 | 101.54 | 44.58 | 294.68 | 0.7379 | -647.6 | -708.7 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 17.23 | 100.37 | 43.42 | 294.40 | 0.7232 | 384.0 | 286.4 | |
| 0.00 | 1.02 | 0.00 | 0.72 | 16.27 | 99.89 | 42.93 | 293.32 | 0.7144 | 438.0 | 378.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
