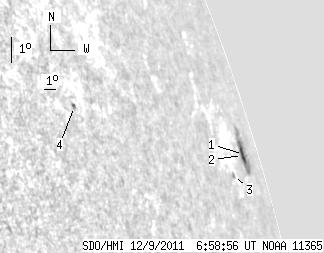

SDO HMI 2011-12-09 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.45 | 24.30 | 20.56 | 86.28 | 16.54 | 138.37 | 81.41 | 286.76 | 0.9892 | 38.1 | -19.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.30 | 20.12 | 8.95 | 78.03 | 16.55 | 139.26 | 82.30 | 286.71 | 0.9924 | 299.7 | -49.1 | |
| 3.15 | -1.00 | 11.61 | -1.00 | 16.52 | 138.95 | 82.00 | 286.69 | 0.9917 | -220.1 | 999999 | |
| 0.00 | 2.05 | 0.00 | 5.63 | 15.89 | 136.08 | 79.13 | 286.19 | 0.9844 | 296.0 | 154.7 | |
| 0.00 | 2.13 | 0.00 | 2.62 | 17.98 | 121.86 | 64.91 | 289.77 | 0.9171 | 435.0 | 253.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
