SDO HMI 2011-12-09 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.84 | 82.94 | 24.40 | 90.03 | 8.84 | 354.45 | -62.50 | 79.98 | 0.8914 | -277.9 | -22.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

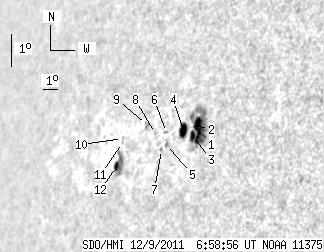

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.25 | 49.19 | 11.63 | 50.87 | 9.10 | 356.03 | -60.93 | 79.55 | 0.8795 | -739.9 | -298.6 | |
| 0.51 | -1.00 | 0.53 | -1.00 | 9.22 | 355.68 | -61.27 | 79.44 | 0.8825 | 157.3 | 999999 | |
| 2.98 | -1.00 | 3.11 | -1.00 | 8.92 | 355.71 | -61.25 | 79.78 | 0.8820 | -312.5 | 999999 | |
| 5.20 | 9.55 | 5.54 | 10.17 | 9.07 | 355.09 | -61.86 | 79.67 | 0.8871 | -234.8 | 89.4 | |
| 0.00 | 1.96 | 0.00 | 2.16 | 8.65 | 354.11 | -62.84 | 80.23 | 0.8945 | -407.0 | -208.1 | |
| 0.00 | 0.77 | 0.00 | 0.85 | 9.01 | 354.00 | -62.95 | 79.84 | 0.8956 | -292.0 | -241.7 | |
| 0.00 | 1.19 | 0.00 | 1.32 | 8.51 | 353.82 | -63.13 | 80.42 | 0.8966 | -192.0 | -200.1 | |
| 0.00 | 0.94 | 0.00 | 1.06 | 8.99 | 353.27 | -63.69 | 79.93 | 0.9011 | -29.0 | -45.3 | |
| 0.00 | 2.98 | 0.00 | 3.47 | 9.26 | 352.56 | -64.40 | 79.69 | 0.9065 | 487.0 | 376.7 | |
| 0.00 | 0.85 | 0.00 | 1.05 | 8.84 | 350.97 | -65.98 | 80.28 | 0.9174 | 383.0 | 342.8 | |
| 0.00 | 0.85 | 0.00 | 1.05 | 8.72 | 351.01 | -65.94 | 80.41 | 0.9171 | 453.0 | 438.4 | |
| 2.90 | 14.66 | 3.59 | 18.03 | 8.01 | 350.81 | -66.15 | 81.20 | 0.9182 | 463.7 | 522.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
