SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.01 | 516.32 | 74.62 | 442.65 | -22.73 | 107.86 | 51.45 | 241.89 | 0.8197 | 582.2 | 283.7 | |
|
previous
or next observation for the same group /

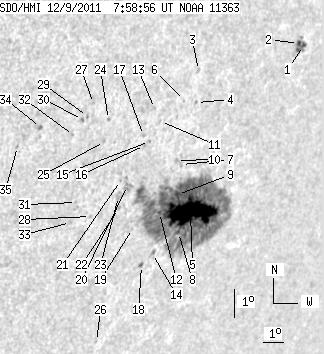

back to the solar disc SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 8.27 | 0.85 | 7.49 | -17.67 | 111.55 | 55.14 | 248.86 | 0.8404 | 508.1 | 618.0 | |
| 1.62 | -1.00 | 1.46 | -1.00 | -17.61 | 111.25 | 54.84 | 248.86 | 0.8376 | 788.9 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.52 | -18.45 | 106.48 | 50.07 | 246.58 | 0.7950 | -440.0 | -373.7 | |
| 0.00 | 1.28 | 0.00 | 1.05 | -19.45 | 106.79 | 50.39 | 245.46 | 0.8008 | -367.0 | -325.9 | |
| 77.06 | 459.98 | 66.88 | 396.89 | -22.94 | 108.18 | 51.77 | 241.76 | 0.8233 | 962.0 | 336.6 | |
| 0.00 | 0.77 | 0.00 | 0.62 | -19.39 | 106.18 | 49.77 | 245.34 | 0.7947 | -665.0 | -549.7 | |
| 0.00 | 1.70 | 0.00 | 1.42 | -21.41 | 106.94 | 50.53 | 243.16 | 0.8077 | 546.0 | 447.0 | |
| 1.28 | -5.00 | 1.11 | -5.00 | -23.59 | 107.90 | 51.50 | 240.93 | 0.8228 | 483.5 | 999999 | |
| 2.81 | -5.00 | 2.38 | -5.00 | -22.37 | 107.21 | 50.80 | 242.12 | 0.8130 | 915.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.34 | -21.28 | 106.63 | 50.22 | 243.21 | 0.8044 | 33.0 | 84.8 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -20.05 | 105.30 | 48.89 | 244.25 | 0.7881 | -588.0 | -466.5 | |
| 1.11 | -5.00 | 0.93 | -5.00 | -22.94 | 106.59 | 50.18 | 241.23 | 0.8092 | 760.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.08 | -19.64 | 104.84 | 48.43 | 244.59 | 0.7824 | -296.0 | -342.9 | |
| 0.00 | 2.81 | 0.00 | 2.40 | -24.27 | 106.94 | 50.53 | 239.80 | 0.8165 | 572.0 | 433.9 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -20.68 | 105.04 | 48.63 | 243.39 | 0.7875 | -536.0 | -466.3 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -20.81 | 104.85 | 48.44 | 243.17 | 0.7862 | -469.0 | -352.0 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -20.49 | 104.67 | 48.26 | 243.49 | 0.7834 | -621.0 | -552.1 | |
| 1.19 | 2.13 | 1.01 | 1.81 | -24.66 | 106.59 | 50.18 | 239.22 | 0.8147 | 420.6 | 393.0 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -23.46 | 105.51 | 49.10 | 240.23 | 0.8011 | 402.0 | 384.4 | |
| 0.00 | 8.35 | 0.00 | 6.69 | -22.08 | 104.60 | 48.19 | 241.54 | 0.7880 | -248.0 | -180.3 | |
| 0.00 | 0.85 | 0.00 | 0.68 | -21.92 | 104.19 | 47.79 | 241.58 | 0.7836 | -451.0 | -421.5 | |
| 0.00 | 1.36 | 0.00 | 1.10 | -22.82 | 104.51 | 48.10 | 240.62 | 0.7897 | -311.0 | -224.9 | |
| 0.00 | 4.86 | 0.00 | 3.88 | -22.43 | 104.33 | 47.92 | 241.01 | 0.7866 | -350.0 | -250.9 | |
| 0.00 | 1.19 | 0.00 | 0.91 | -19.99 | 102.83 | 46.42 | 243.44 | 0.7635 | -619.0 | -514.6 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -20.68 | 102.92 | 46.51 | 242.61 | 0.7668 | -688.0 | -583.4 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -27.15 | 105.73 | 49.33 | 236.01 | 0.8161 | 566.0 | 491.6 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -19.49 | 101.97 | 45.56 | 243.74 | 0.7528 | -674.0 | -529.7 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -23.07 | 103.29 | 46.88 | 239.83 | 0.7791 | -246.0 | -188.0 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -19.90 | 101.85 | 45.44 | 243.18 | 0.7531 | -631.0 | -507.8 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -19.99 | 101.66 | 45.25 | 242.98 | 0.7515 | -798.0 | -661.4 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -22.62 | 102.44 | 46.03 | 240.03 | 0.7692 | -599.0 | -504.8 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -20.49 | 101.44 | 45.03 | 242.26 | 0.7511 | -610.0 | -572.6 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -23.27 | 102.44 | 46.04 | 239.24 | 0.7718 | -613.0 | -462.7 | |
| 0.00 | 2.05 | 0.00 | 1.49 | -20.24 | 99.89 | 43.48 | 241.92 | 0.7341 | -674.0 | -629.5 | |
| 0.00 | 1.19 | 0.00 | 0.86 | -20.84 | 99.11 | 42.70 | 240.80 | 0.7284 | -650.0 | -512.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
