SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.46 | 0.00 | 3.64 | -18.61 | 78.20 | 21.79 | 227.89 | 0.4762 | -248.5 | -30.9 | |
|
previous
or next observation for the same group /

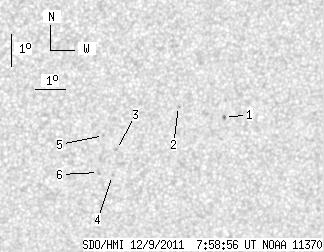

back to the solar disc SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.88 | -17.91 | 80.64 | 24.23 | 231.97 | 0.4978 | 837.0 | 764.4 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -17.57 | 79.03 | 22.62 | 230.74 | 0.4756 | 637.0 | 530.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -18.90 | 77.13 | 20.72 | 226.12 | 0.4664 | -650.0 | -386.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -19.72 | 77.11 | 20.70 | 224.78 | 0.4743 | -704.0 | -535.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -18.47 | 76.64 | 20.24 | 226.19 | 0.4565 | -768.0 | -568.0 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -19.62 | 76.63 | 20.22 | 224.28 | 0.4682 | -843.0 | -686.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
