SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.70 | 266.90 | 44.53 | 307.15 | -17.03 | 353.15 | -63.26 | 108.87 | 0.9042 | 605.4 | 145.5 | |
|
previous
or next observation for the same group /

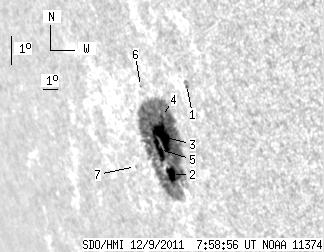

back to the solar disc SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.07 | 0.00 | 3.21 | -15.14 | 355.70 | -60.71 | 107.17 | 0.8831 | -616.0 | -432.4 | |
| 7.50 | 261.87 | 8.67 | 301.55 | -17.92 | 353.15 | -63.26 | 109.84 | 0.9052 | 631.4 | 154.6 | |
| 21.14 | -2.00 | 24.19 | -2.00 | -16.74 | 353.26 | -63.15 | 108.57 | 0.9031 | 799.3 | 999999 | |
| 0.94 | -2.00 | 1.06 | -2.00 | -16.12 | 353.55 | -62.86 | 107.93 | 0.9004 | 652.2 | 999999 | |
| 9.12 | -2.00 | 10.61 | -2.00 | -17.14 | 352.80 | -63.61 | 108.94 | 0.9068 | 376.1 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.99 | -15.20 | 352.62 | -63.79 | 106.78 | 0.9061 | 312.0 | 286.3 | |
| 0.00 | 1.11 | 0.00 | 1.40 | -17.66 | 350.70 | -65.71 | 109.20 | 0.9214 | -414.0 | -298.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
