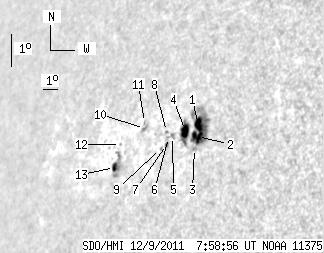

SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.27 | 88.47 | 24.45 | 93.91 | 8.85 | 354.58 | -61.83 | 79.90 | 0.8862 | -253.6 | -43.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.14 | 44.75 | 6.24 | 45.38 | 9.24 | 356.00 | -60.41 | 79.33 | 0.8754 | -652.6 | -361.5 | |
| 6.65 | -1.00 | 6.75 | -1.00 | 8.91 | 356.03 | -60.38 | 79.70 | 0.8749 | -676.4 | 999999 | |
| 0.00 | 2.47 | 0.00 | 2.51 | 8.56 | 355.94 | -60.47 | 80.12 | 0.8753 | -276.0 | -188.1 | |
| 6.56 | 15.17 | 6.84 | 15.80 | 9.10 | 355.23 | -61.17 | 79.57 | 0.8816 | -269.4 | 28.0 | |
| 0.00 | 2.05 | 0.00 | 2.18 | 8.92 | 354.46 | -61.95 | 79.85 | 0.8876 | 485.0 | 181.9 | |
| 0.00 | 1.36 | 0.00 | 1.47 | 8.89 | 354.21 | -62.19 | 79.90 | 0.8896 | -189.0 | -108.5 | |
| 1.02 | 2.13 | 1.10 | 2.29 | 8.68 | 354.15 | -62.26 | 80.14 | 0.8900 | -184.7 | -155.3 | |
| 0.00 | 1.11 | 0.00 | 1.20 | 9.07 | 354.03 | -62.38 | 79.72 | 0.8912 | -128.0 | -94.3 | |
| 0.00 | 1.19 | 0.00 | 1.30 | 8.56 | 353.79 | -62.62 | 80.31 | 0.8927 | -241.0 | -170.0 | |
| 0.00 | 2.47 | 0.00 | 2.82 | 9.16 | 352.53 | -63.88 | 79.75 | 0.9026 | 536.0 | 454.4 | |
| 0.00 | 0.94 | 0.00 | 1.07 | 9.34 | 352.47 | -63.94 | 79.56 | 0.9032 | 275.0 | 246.3 | |
| 0.00 | 0.94 | 0.00 | 1.13 | 8.69 | 350.99 | -65.41 | 80.40 | 0.9134 | 486.0 | 464.3 | |
| 2.90 | 13.89 | 3.52 | 16.76 | 8.00 | 350.78 | -65.63 | 81.17 | 0.9146 | 428.0 | 539.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
