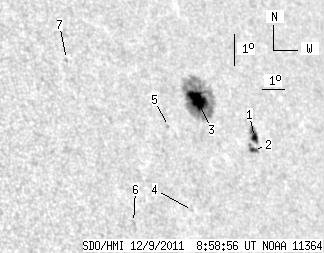

SDO HMI 2011-12-09 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.02 | 114.57 | 21.04 | 88.67 | 18.41 | 103.30 | 47.43 | 294.42 | 0.7697 | -423.1 | -149.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.35 | 9.21 | 3.48 | 7.38 | 17.49 | 105.41 | 49.55 | 292.60 | 0.7884 | 575.9 | 544.2 | |
| 2.47 | 5.46 | 1.97 | 4.34 | 17.09 | 105.22 | 49.35 | 292.16 | 0.7854 | 652.5 | 623.2 | |
| 20.20 | 94.11 | 15.59 | 72.77 | 18.67 | 103.17 | 47.30 | 294.79 | 0.7693 | -935.8 | -253.5 | |
| 0.00 | 1.02 | 0.00 | 0.76 | 15.23 | 101.82 | 45.96 | 290.86 | 0.7446 | 427.0 | 331.3 | |
| 0.00 | 1.19 | 0.00 | 0.89 | 17.82 | 101.55 | 45.69 | 294.30 | 0.7498 | -704.0 | -616.2 | |
| 0.00 | 2.13 | 0.00 | 1.50 | 14.85 | 99.18 | 43.31 | 291.27 | 0.7139 | 448.0 | 412.9 | |
| 0.00 | 1.45 | 0.00 | 1.03 | 19.90 | 97.81 | 41.95 | 298.56 | 0.7180 | 535.0 | 465.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
