SDO HMI 2011-12-09 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.76 | 0.00 | 4.43 | -18.48 | 79.78 | 23.92 | 230.48 | 0.4999 | -60.8 | 103.3 | |
|
previous
or next observation for the same group /

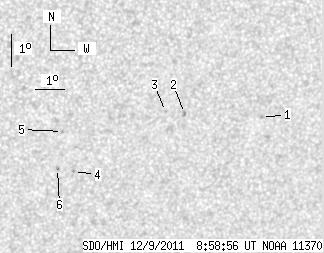

back to the solar disc SDO HMI 2011-12-09 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.15 | -18.03 | 83.35 | 27.49 | 234.99 | 0.5381 | 668.0 | 522.8 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -17.91 | 80.67 | 24.81 | 232.58 | 0.5047 | 885.0 | 715.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -17.85 | 80.01 | 24.15 | 231.99 | 0.4963 | 589.0 | 497.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.72 | 77.17 | 21.30 | 225.57 | 0.4809 | -761.0 | -554.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -18.47 | 76.63 | 20.77 | 226.90 | 0.4625 | -854.0 | -631.8 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -19.63 | 76.61 | 20.75 | 225.00 | 0.4739 | -892.0 | -774.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
