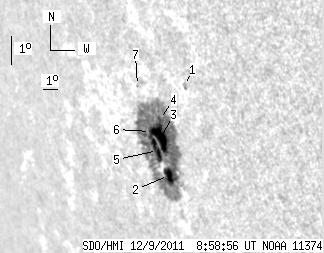

SDO HMI 2011-12-09 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.62 | 264.50 | 43.59 | 299.09 | -17.00 | 353.15 | -62.72 | 108.92 | 0.9003 | 624.9 | 145.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 2.99 | -15.14 | 355.66 | -60.20 | 107.24 | 0.8791 | -565.0 | -444.3 | |
| 7.33 | 260.32 | 8.32 | 294.64 | -17.92 | 353.09 | -62.78 | 109.92 | 0.9018 | 656.4 | 151.6 | |
| 20.80 | -2.00 | 23.34 | -2.00 | -16.74 | 353.26 | -62.60 | 108.65 | 0.8992 | 824.5 | 999999 | |
| 1.45 | -2.00 | 1.61 | -2.00 | -16.18 | 353.51 | -62.35 | 108.07 | 0.8968 | 693.8 | 999999 | |
| 8.78 | -2.00 | 10.03 | -2.00 | -17.14 | 352.81 | -63.05 | 109.02 | 0.9028 | 366.6 | 999999 | |
| 0.26 | -2.00 | 0.29 | -2.00 | -16.55 | 352.69 | -63.18 | 108.36 | 0.9031 | -40.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.46 | -15.14 | 352.60 | -63.27 | 106.79 | 0.9023 | 232.0 | 242.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
