SDO HMI 2011-12-09 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.58 | 85.25 | 22.84 | 43.66 | 7.87 | 42.87 | -12.45 | 56.56 | 0.2565 | 105.3 | 75.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

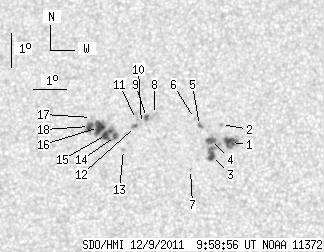

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.89 | 12.96 | 5.02 | 6.58 | 7.65 | 45.13 | -10.19 | 52.27 | 0.2227 | -1077.9 | -755.3 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 8.19 | 44.84 | -10.48 | 51.16 | 0.2321 | -1026.0 | -739.7 | |
| 4.26 | 19.43 | 2.17 | 9.89 | 7.24 | 44.56 | -10.75 | 55.25 | 0.2263 | -1033.3 | -891.5 | |
| 4.94 | -3.00 | 2.52 | -3.00 | 7.71 | 44.52 | -10.80 | 53.64 | 0.2316 | -943.2 | 999999 | |
| 1.45 | 2.56 | 0.74 | 1.30 | 8.16 | 44.18 | -11.14 | 52.95 | 0.2408 | -751.1 | -659.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.37 | 44.02 | -11.30 | 52.64 | 0.2450 | -684.0 | -529.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 6.85 | 43.94 | -11.38 | 58.15 | 0.2317 | -814.0 | -588.3 | |
| 0.00 | 2.56 | 0.00 | 1.31 | 8.49 | 42.79 | -12.53 | 55.02 | 0.2630 | 810.0 | 736.4 | |
| 1.88 | 2.56 | 0.96 | 1.31 | 8.40 | 42.55 | -12.77 | 55.81 | 0.2655 | 1095.0 | 1048.9 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 8.22 | 42.40 | -12.91 | 56.67 | 0.2659 | 775.0 | 551.5 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 8.34 | 42.25 | -13.07 | 56.61 | 0.2692 | 792.0 | 726.8 | |
| 1.11 | 2.30 | 0.57 | 1.18 | 8.13 | 42.22 | -13.09 | 57.32 | 0.2677 | 940.8 | 910.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 7.45 | 41.88 | -13.44 | 60.19 | 0.2668 | 1062.0 | 810.5 | |
| 2.30 | 36.31 | 1.18 | 18.73 | 7.83 | 41.62 | -13.70 | 59.40 | 0.2738 | 1095.1 | 749.5 | |
| 5.54 | -14.00 | 2.86 | -14.00 | 7.89 | 41.34 | -13.98 | 59.70 | 0.2783 | 1136.4 | 999999 | |
| 8.61 | -14.00 | 4.44 | -14.00 | 8.10 | 41.09 | -14.23 | 59.49 | 0.2837 | 1047.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 8.40 | 40.86 | -14.46 | 58.98 | 0.2895 | 147.0 | 200.3 | |
| 4.60 | -14.00 | 2.38 | -14.00 | 8.13 | 40.81 | -14.51 | 59.88 | 0.2880 | 835.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
