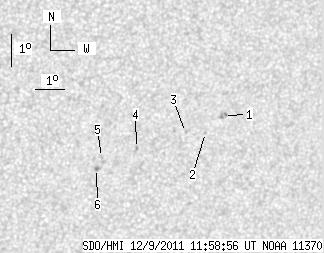

SDO HMI 2011-12-09 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.71 | 0.00 | 5.58 | -18.74 | 78.91 | 24.68 | 231.02 | 0.5107 | -9.2 | 173.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.32 | 0.00 | 1.93 | -18.01 | 80.77 | 26.54 | 234.16 | 0.5263 | 676.0 | 690.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -18.54 | 80.23 | 26.00 | 232.78 | 0.5241 | 529.0 | 469.9 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -18.54 | 79.54 | 25.31 | 232.09 | 0.5159 | -369.0 | -384.0 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -19.04 | 77.93 | 23.71 | 229.56 | 0.5015 | 592.0 | 532.1 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -19.32 | 76.79 | 22.56 | 227.78 | 0.4909 | -570.0 | -489.6 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -19.67 | 76.67 | 22.44 | 227.08 | 0.4929 | -913.0 | -721.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
