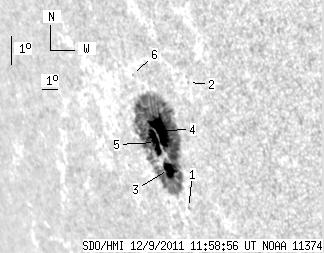

SDO HMI 2011-12-09 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.11 | 277.38 | 46.32 | 297.86 | -17.10 | 353.03 | -61.19 | 109.27 | 0.8892 | 601.6 | 170.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 1.09 | -19.14 | 353.62 | -60.61 | 111.64 | 0.8875 | 264.0 | 197.7 | |
| 0.00 | 1.02 | 0.00 | 1.01 | -15.27 | 355.67 | -58.55 | 107.66 | 0.8658 | -509.0 | -408.2 | |
| 8.86 | 274.74 | 9.55 | 295.11 | -17.95 | 353.04 | -61.18 | 110.22 | 0.8902 | 633.5 | 172.2 | |
| 21.47 | -3.00 | 22.90 | -3.00 | -16.74 | 353.22 | -61.01 | 108.91 | 0.8873 | 817.8 | 999999 | |
| 12.78 | -3.00 | 13.87 | -3.00 | -17.11 | 352.69 | -61.54 | 109.23 | 0.8918 | 349.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.65 | -15.02 | 352.31 | -61.91 | 106.84 | 0.8922 | 294.0 | 269.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
