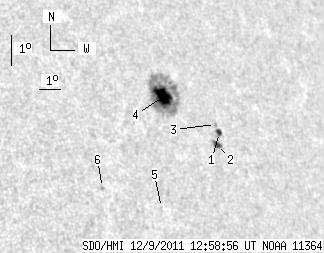

SDO HMI 2011-12-09 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.35 | 104.04 | 19.01 | 84.15 | 18.44 | 103.34 | 49.67 | 293.74 | 0.7922 | -326.0 | -187.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.64 | 4.18 | 2.22 | 3.51 | 17.52 | 105.49 | 51.81 | 291.98 | 0.8105 | 540.1 | 547.7 | |
| 3.58 | 4.60 | 2.99 | 3.84 | 17.14 | 105.24 | 51.56 | 291.60 | 0.8073 | 662.2 | 615.0 | |
| 0.00 | 1.53 | 0.00 | 1.29 | 17.76 | 105.39 | 51.71 | 292.31 | 0.8102 | 636.0 | 541.6 | |
| 17.13 | 91.43 | 13.80 | 73.78 | 18.63 | 103.17 | 49.50 | 294.02 | 0.7911 | -880.5 | -249.4 | |
| 0.00 | 1.02 | 0.00 | 0.79 | 15.19 | 101.88 | 48.20 | 290.14 | 0.7686 | 392.0 | 332.4 | |
| 0.00 | 1.28 | 0.00 | 0.94 | 15.80 | 99.40 | 45.72 | 291.69 | 0.7438 | 769.0 | 617.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
