SDO HMI 2011-12-09 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.27 | 89.73 | 16.00 | 45.69 | 7.95 | 43.17 | -10.51 | 51.43 | 0.2316 | 553.8 | -108.4 | |
|
previous
or next observation for the same group /

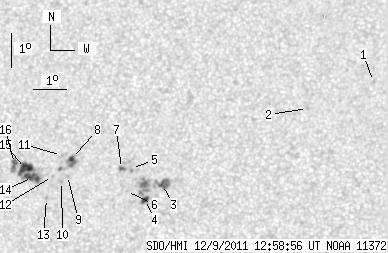

back to the solar disc SDO HMI 2011-12-09 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.75 | 51.57 | -2.11 | 10.83 | 0.1935 | 722.0 | 552.3 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 9.94 | 49.59 | -4.09 | 21.82 | 0.1897 | 826.0 | 623.4 | |
| 0.00 | 12.10 | 0.00 | 6.12 | 7.67 | 45.27 | -8.41 | 46.78 | 0.1997 | -1427.0 | -985.9 | |
| 3.41 | 19.26 | 1.72 | 9.74 | 7.23 | 44.77 | -8.91 | 50.10 | 0.2012 | -976.5 | -914.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 8.15 | 44.33 | -9.35 | 48.08 | 0.2171 | -764.0 | -807.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 7.47 | 44.19 | -9.49 | 50.95 | 0.2114 | -540.0 | -401.2 | |
| 1.96 | 2.90 | 1.00 | 1.47 | 8.15 | 44.02 | -9.65 | 48.98 | 0.2210 | -813.3 | -840.2 | |
| 2.13 | 12.87 | 1.09 | 6.57 | 8.45 | 42.50 | -11.18 | 52.05 | 0.2443 | 1135.0 | 938.7 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 7.94 | 42.39 | -11.28 | 54.00 | 0.2406 | 874.0 | 623.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.76 | 42.22 | -11.46 | 55.03 | 0.2414 | 979.0 | 726.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 8.54 | 42.19 | -11.48 | 52.50 | 0.2493 | 925.0 | 652.6 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.91 | 41.94 | -11.74 | 55.16 | 0.2467 | 882.0 | 677.6 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 7.26 | 41.77 | -11.90 | 57.78 | 0.2430 | 818.0 | 660.1 | |
| 8.69 | 24.63 | 4.45 | 12.62 | 7.88 | 41.33 | -12.35 | 56.58 | 0.2549 | 1169.5 | 890.5 | |
| 10.22 | -14.00 | 5.24 | -14.00 | 8.15 | 41.11 | -12.57 | 56.17 | 0.2605 | 988.5 | 999999 | |
| 4.86 | 7.07 | 2.50 | 3.63 | 8.30 | 40.77 | -12.91 | 56.39 | 0.2667 | 790.6 | 705.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
