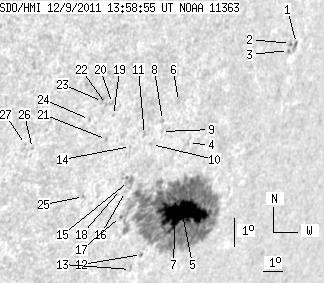

SDO HMI 2011-12-09 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.85 | 499.66 | 64.39 | 460.32 | -22.80 | 107.79 | 54.67 | 242.82 | 0.8474 | 582.0 | 281.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 5.11 | 1.10 | 5.06 | -17.64 | 111.59 | 58.46 | 249.62 | 0.8685 | 320.2 | 441.1 | |
| 0.00 | 2.64 | 0.00 | 2.59 | -17.64 | 111.23 | 58.10 | 249.55 | 0.8655 | 543.0 | 581.5 | |
| 0.34 | -1.00 | 0.34 | -1.00 | -17.86 | 111.22 | 58.10 | 249.30 | 0.8658 | 684.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.23 | -20.78 | 107.11 | 53.98 | 244.96 | 0.8369 | -124.0 | -110.9 | |
| 66.80 | 457.35 | 62.42 | 423.52 | -23.01 | 108.04 | 54.92 | 242.66 | 0.8501 | 894.6 | 317.8 | |
| 0.00 | 1.02 | 0.00 | 0.89 | -19.46 | 105.92 | 52.80 | 246.18 | 0.8232 | -137.0 | -138.8 | |
| 0.26 | -5.00 | 0.23 | -5.00 | -22.53 | 107.37 | 54.24 | 243.02 | 0.8433 | 1173.0 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.76 | -20.05 | 105.38 | 52.25 | 245.32 | 0.8196 | -542.0 | -448.5 | |
| 0.00 | 1.02 | 0.00 | 0.88 | -20.40 | 105.49 | 52.36 | 244.94 | 0.8216 | -386.0 | -322.1 | |
| 0.00 | 1.36 | 0.00 | 1.17 | -20.81 | 105.17 | 52.05 | 244.36 | 0.8198 | -422.0 | -392.0 | |
| 0.00 | 1.87 | 0.00 | 1.59 | -20.50 | 104.66 | 51.53 | 244.58 | 0.8143 | -568.0 | -472.6 | |
| 0.00 | 1.62 | 0.00 | 1.47 | -24.33 | 106.58 | 53.45 | 240.71 | 0.8414 | 400.0 | 352.1 | |
| 0.00 | 1.36 | 0.00 | 1.24 | -24.82 | 106.28 | 53.15 | 240.06 | 0.8403 | 479.0 | 416.4 | |
| 0.00 | 0.68 | 0.00 | 0.57 | -20.88 | 104.13 | 51.00 | 243.96 | 0.8104 | -452.0 | -351.9 | |
| 0.00 | 8.52 | 0.00 | 7.29 | -21.99 | 104.58 | 51.45 | 242.79 | 0.8176 | -35.0 | -48.3 | |
| 0.00 | 1.19 | 0.00 | 1.02 | -22.31 | 104.59 | 51.46 | 242.42 | 0.8186 | 244.0 | 205.5 | |
| 0.34 | -5.00 | 0.30 | -5.00 | -23.11 | 104.75 | 51.63 | 241.54 | 0.8224 | -259.2 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.44 | -22.24 | 104.30 | 51.17 | 242.40 | 0.8159 | -211.0 | -191.2 | |
| 0.00 | 0.85 | 0.00 | 0.69 | -19.90 | 102.85 | 49.72 | 244.72 | 0.7956 | -564.0 | -486.1 | |
| 0.00 | 2.22 | 0.00 | 1.79 | -19.52 | 102.64 | 49.51 | 245.11 | 0.7925 | -592.0 | -524.3 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -20.66 | 102.84 | 49.71 | 243.81 | 0.7977 | -609.0 | -433.1 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -19.55 | 102.36 | 49.23 | 244.98 | 0.7899 | -651.0 | -578.9 | |
| 0.00 | 2.64 | 0.00 | 2.11 | -19.46 | 102.13 | 49.00 | 245.02 | 0.7873 | -612.0 | -421.6 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -20.03 | 101.74 | 48.61 | 244.20 | 0.7853 | -329.0 | -343.7 | |
| 0.00 | 0.85 | 0.00 | 0.70 | -22.47 | 102.55 | 49.42 | 241.54 | 0.8007 | -606.0 | -540.3 | |
| 0.00 | 1.02 | 0.00 | 0.78 | -20.94 | 99.45 | 46.32 | 242.23 | 0.7657 | -440.0 | -376.1 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -20.82 | 99.08 | 45.95 | 242.24 | 0.7615 | -580.0 | -495.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
