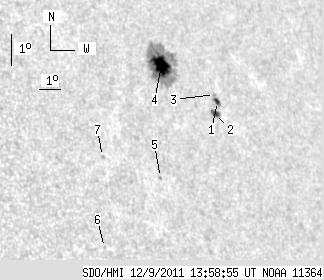

SDO HMI 2011-12-09 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.84 | 100.96 | 22.10 | 82.45 | 18.37 | 103.29 | 50.16 | 293.49 | 0.7968 | -314.9 | -189.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.07 | 4.09 | 2.61 | 3.48 | 17.52 | 105.48 | 52.35 | 291.83 | 0.8157 | 542.3 | 472.2 | |
| 4.43 | 5.45 | 3.74 | 4.61 | 17.14 | 105.23 | 52.10 | 291.45 | 0.8124 | 625.4 | 483.4 | |
| 0.00 | 0.94 | 0.00 | 0.80 | 17.73 | 105.42 | 52.29 | 292.11 | 0.8156 | 650.0 | 527.9 | |
| 19.34 | 87.07 | 15.75 | 70.99 | 18.63 | 103.15 | 50.02 | 293.85 | 0.7962 | -896.5 | -249.1 | |
| 0.00 | 1.19 | 0.00 | 0.93 | 15.16 | 101.86 | 48.73 | 289.94 | 0.7741 | 454.0 | 384.4 | |
| 0.00 | 1.11 | 0.00 | 0.81 | 13.02 | 98.76 | 45.63 | 288.06 | 0.7349 | 391.0 | 335.5 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 15.80 | 99.41 | 46.29 | 291.51 | 0.7499 | 652.0 | 582.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
