SDO HMI 2011-12-09 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.96 | 284.72 | 49.05 | 291.31 | -17.18 | 352.99 | -59.58 | 109.64 | 0.8768 | 635.8 | 163.9 | |
|
previous
or next observation for the same group /

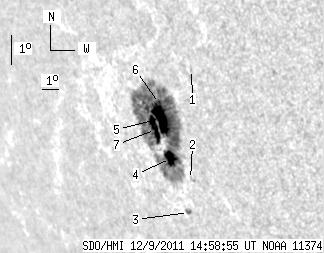

back to the solar disc SDO HMI 2011-12-09 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.88 | -15.27 | 355.65 | -56.93 | 107.96 | 0.8519 | -298.0 | -337.7 | |
| 0.00 | 0.94 | 0.00 | 0.94 | -18.67 | 353.93 | -58.65 | 111.51 | 0.8716 | 40.0 | 3.2 | |
| 0.94 | 2.30 | 0.97 | 2.37 | -19.70 | 353.20 | -59.38 | 112.52 | 0.8790 | -498.8 | -411.6 | |
| 11.50 | 280.54 | 11.78 | 287.12 | -18.02 | 353.07 | -59.50 | 110.60 | 0.8774 | 709.4 | 169.8 | |
| 21.04 | -4.00 | 21.38 | -4.00 | -16.78 | 353.12 | -59.45 | 109.21 | 0.8752 | 871.7 | 999999 | |
| 1.62 | -4.00 | 1.63 | -4.00 | -16.32 | 353.30 | -59.28 | 108.72 | 0.8732 | 851.2 | 999999 | |
| 12.86 | -4.00 | 13.29 | -4.00 | -17.12 | 352.64 | -59.94 | 109.51 | 0.8795 | 362.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
