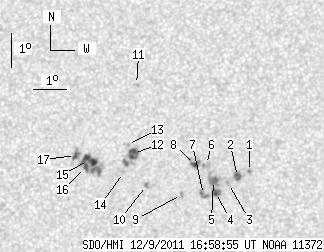

SDO HMI 2011-12-09 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.72 | 103.42 | 16.57 | 52.35 | 8.03 | 42.89 | -8.58 | 45.52 | 0.2069 | 90.3 | 55.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.87 | 45.94 | -5.53 | 34.35 | 0.1700 | -977.0 | -851.5 | |
| 4.43 | 5.20 | 2.23 | 2.61 | 7.72 | 45.59 | -5.89 | 36.55 | 0.1715 | -1049.9 | -1049.1 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 7.51 | 45.32 | -6.15 | 38.52 | 0.1715 | -997.0 | -846.2 | |
| 3.58 | 5.71 | 1.80 | 2.87 | 7.24 | 44.93 | -6.54 | 41.24 | 0.1722 | -1090.5 | -1022.8 | |
| 0.00 | 10.56 | 0.00 | 5.32 | 7.60 | 44.87 | -6.61 | 40.17 | 0.1776 | -1270.0 | -959.9 | |
| 0.00 | 3.92 | 0.00 | 1.97 | 8.08 | 44.65 | -6.82 | 39.38 | 0.1863 | -652.0 | -757.7 | |
| 0.00 | 5.11 | 0.00 | 2.57 | 7.19 | 44.58 | -6.90 | 42.99 | 0.1756 | -812.0 | -775.2 | |
| 2.73 | 6.90 | 1.37 | 3.48 | 8.08 | 44.29 | -7.18 | 40.82 | 0.1903 | -942.9 | -672.6 | |
| 0.00 | 2.64 | 0.00 | 1.33 | 7.19 | 43.92 | -7.56 | 45.59 | 0.1835 | -805.0 | -672.1 | |
| 0.00 | 2.39 | 0.00 | 1.21 | 7.45 | 42.86 | -8.61 | 48.26 | 0.2000 | 1073.0 | 878.6 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 10.47 | 42.48 | -8.99 | 39.79 | 0.2412 | -748.0 | -644.9 | |
| 8.01 | 16.61 | 4.06 | 8.42 | 8.41 | 42.45 | -9.03 | 46.18 | 0.2161 | 1118.7 | 882.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 8.68 | 42.26 | -9.21 | 45.86 | 0.2216 | 801.0 | 718.7 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 7.84 | 42.16 | -9.32 | 49.04 | 0.2133 | 750.0 | 691.6 | |
| 8.43 | 30.24 | 4.29 | 15.38 | 8.23 | 41.12 | -10.35 | 50.64 | 0.2311 | 1042.6 | 886.3 | |
| 2.39 | -15.00 | 1.21 | -15.00 | 7.99 | 41.01 | -10.47 | 51.77 | 0.2301 | 1032.7 | 999999 | |
| 3.15 | 7.16 | 1.61 | 3.65 | 8.35 | 40.69 | -10.78 | 51.36 | 0.2380 | 849.8 | 679.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
