SDO HMI 2011-12-09 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.10 | 298.55 | 53.60 | 295.89 | -17.20 | 352.99 | -58.49 | 109.87 | 0.8680 | 652.8 | 188.5 | |
|
previous
or next observation for the same group /

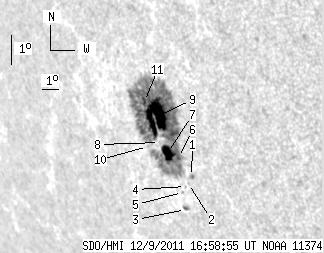

back to the solar disc SDO HMI 2011-12-09 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.98 | -18.74 | 354.05 | -57.43 | 111.84 | 0.8618 | -453.0 | -209.5 | |
| 0.00 | 0.77 | 0.00 | 0.75 | -18.96 | 353.75 | -57.72 | 112.02 | 0.8646 | 329.0 | 366.2 | |
| 1.11 | 2.21 | 1.11 | 2.21 | -19.77 | 353.11 | -58.36 | 112.80 | 0.8712 | -570.5 | -561.9 | |
| 0.00 | 0.68 | 0.00 | 0.67 | -19.05 | 353.52 | -57.95 | 112.08 | 0.8666 | 414.0 | 372.8 | |
| 0.00 | 0.94 | 0.00 | 0.93 | -19.24 | 353.24 | -58.24 | 112.23 | 0.8692 | 274.0 | 175.5 | |
| 1.70 | 290.55 | 1.67 | 287.97 | -18.15 | 353.60 | -57.88 | 111.07 | 0.8645 | 639.3 | 195.6 | |
| 12.10 | -6.00 | 12.01 | -6.00 | -17.99 | 353.03 | -58.45 | 110.77 | 0.8689 | 742.7 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.51 | -17.68 | 352.71 | -58.76 | 110.36 | 0.8709 | 418.0 | 373.3 | |
| 37.91 | -6.00 | 37.53 | -6.00 | -16.87 | 352.95 | -58.53 | 109.49 | 0.8678 | 764.0 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.87 | -17.80 | 351.92 | -59.56 | 110.34 | 0.8775 | -262.0 | -241.4 | |
| 1.28 | -6.00 | 1.28 | -6.00 | -16.41 | 352.46 | -59.01 | 108.87 | 0.8711 | 124.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
