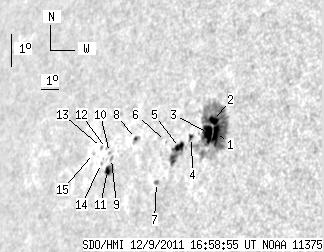

SDO HMI 2011-12-09 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.40 | 158.36 | 27.52 | 142.44 | 9.12 | 355.40 | -56.07 | 78.93 | 0.8366 | -270.3 | -127.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.47 | 118.32 | 5.66 | 103.95 | 9.24 | 356.51 | -54.96 | 78.65 | 0.8265 | -962.2 | -281.1 | |
| 4.09 | -1.00 | 3.60 | -1.00 | 9.60 | 356.32 | -55.15 | 78.25 | 0.8287 | -702.5 | 999999 | |
| 8.60 | -1.00 | 7.60 | -1.00 | 9.21 | 356.15 | -55.33 | 78.74 | 0.8299 | -477.9 | 999999 | |
| 1.36 | 3.15 | 1.23 | 2.85 | 9.09 | 355.27 | -56.21 | 78.99 | 0.8382 | -368.9 | -188.5 | |
| 6.22 | 17.72 | 5.70 | 16.27 | 8.80 | 354.68 | -56.79 | 79.42 | 0.8433 | -432.1 | 284.0 | |
| 0.00 | 0.43 | 0.00 | 0.40 | 8.98 | 353.86 | -57.61 | 79.30 | 0.8510 | -201.0 | -143.4 | |
| 0.00 | 2.04 | 0.00 | 1.92 | 7.75 | 353.64 | -57.83 | 80.76 | 0.8519 | 679.0 | 539.7 | |
| 0.68 | 3.24 | 0.67 | 3.19 | 9.07 | 352.11 | -59.37 | 79.39 | 0.8665 | 495.9 | 510.6 | |
| 0.00 | 1.79 | 0.00 | 1.83 | 8.48 | 350.82 | -60.65 | 80.21 | 0.8769 | 634.0 | 559.4 | |
| 0.00 | 0.94 | 0.00 | 0.96 | 8.66 | 350.65 | -60.83 | 80.02 | 0.8785 | 550.0 | 454.0 | |
| 2.98 | 6.90 | 3.06 | 7.06 | 8.12 | 350.67 | -60.81 | 80.63 | 0.8779 | 513.0 | 579.0 | |
| 0.00 | 0.94 | 0.00 | 0.97 | 8.78 | 350.43 | -61.05 | 79.90 | 0.8803 | 377.0 | 350.1 | |
| 0.00 | 1.19 | 0.00 | 1.25 | 8.81 | 350.11 | -61.37 | 79.90 | 0.8830 | 331.0 | 285.4 | |
| 0.00 | 0.85 | 0.00 | 0.89 | 8.33 | 350.24 | -61.23 | 80.43 | 0.8816 | 332.0 | 284.6 | |
| 0.00 | 0.85 | 0.00 | 0.90 | 8.63 | 349.65 | -61.82 | 80.15 | 0.8865 | 320.0 | 218.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
