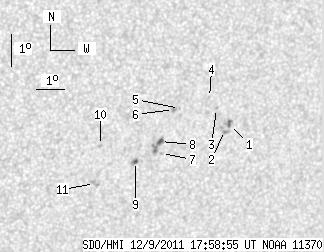

SDO HMI 2011-12-09 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.62 | 29.65 | 3.34 | 17.54 | -18.27 | 79.25 | 28.33 | 235.33 | 0.5500 | 147.0 | 9.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.04 | 4.00 | 1.23 | 2.41 | -17.83 | 81.20 | 30.28 | 237.67 | 0.5703 | 850.4 | 789.3 | |
| 0.00 | 4.43 | 0.00 | 2.66 | -18.02 | 81.06 | 30.14 | 237.27 | 0.5698 | 672.0 | 665.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -17.34 | 80.65 | 29.73 | 238.02 | 0.5602 | 645.0 | 477.4 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -17.00 | 80.34 | 29.42 | 238.32 | 0.5542 | 609.0 | 419.0 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -17.34 | 79.34 | 28.42 | 236.95 | 0.5441 | 526.0 | 509.1 | |
| 0.00 | 2.64 | 0.00 | 1.55 | -17.37 | 79.13 | 28.21 | 236.72 | 0.5418 | 891.0 | 674.6 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -18.73 | 78.95 | 28.03 | 234.38 | 0.5495 | -803.0 | -605.5 | |
| 2.30 | 7.84 | 1.36 | 4.62 | -18.36 | 78.85 | 27.92 | 234.88 | 0.5455 | -660.8 | -756.9 | |
| 1.28 | 2.47 | 0.75 | 1.45 | -18.98 | 78.08 | 27.15 | 233.20 | 0.5411 | 796.7 | 678.4 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -18.49 | 76.77 | 25.85 | 232.73 | 0.5217 | -822.0 | -726.3 | |
| 0.00 | 3.24 | 0.00 | 1.89 | -19.67 | 76.76 | 25.84 | 230.85 | 0.5314 | -796.0 | -683.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
