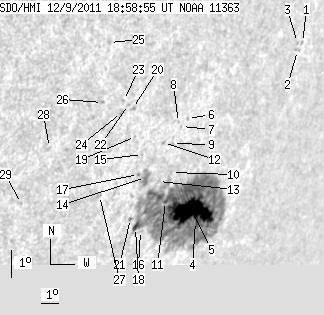

SDO HMI 2011-12-09 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.74 | 471.52 | 56.67 | 464.24 | -22.86 | 107.66 | 57.29 | 243.47 | 0.8684 | 515.5 | 295.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 1.38 | -17.68 | 111.57 | 61.20 | 250.10 | 0.8899 | 242.0 | 268.4 | |
| 0.00 | 2.13 | 0.00 | 2.28 | -17.93 | 111.39 | 61.02 | 249.79 | 0.8889 | 712.0 | 524.8 | |
| 0.00 | 1.02 | 0.00 | 1.09 | -17.68 | 111.25 | 60.88 | 250.04 | 0.8875 | 676.0 | 623.6 | |
| 0.68 | 430.91 | 0.69 | 427.17 | -23.33 | 108.48 | 58.11 | 243.15 | 0.8758 | 369.8 | 328.0 | |
| 51.11 | -4.00 | 51.36 | -4.00 | -23.01 | 108.07 | 57.71 | 243.41 | 0.8721 | 890.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.79 | -20.06 | 106.00 | 55.63 | 246.23 | 0.8493 | -388.0 | -338.0 | |
| 0.00 | 0.51 | 0.00 | 0.47 | -20.31 | 105.80 | 55.43 | 245.89 | 0.8481 | -228.0 | -190.0 | |
| 0.00 | 0.77 | 0.00 | 0.71 | -20.19 | 105.56 | 55.19 | 245.98 | 0.8459 | -494.0 | -440.6 | |
| 0.00 | 1.02 | 0.00 | 0.95 | -20.85 | 105.59 | 55.22 | 245.22 | 0.8475 | -311.0 | -255.6 | |
| 0.00 | 0.51 | 0.00 | 0.48 | -21.77 | 106.06 | 55.69 | 244.29 | 0.8535 | 544.0 | 528.8 | |
| 1.28 | -4.00 | 1.22 | -4.00 | -22.69 | 106.28 | 55.91 | 243.30 | 0.8573 | 798.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.25 | -20.82 | 105.07 | 54.70 | 245.12 | 0.8431 | -433.0 | -363.9 | |
| 0.00 | 1.87 | 0.00 | 1.75 | -22.05 | 105.49 | 55.12 | 243.81 | 0.8495 | 546.0 | 520.5 | |
| 0.00 | 10.14 | 0.00 | 9.26 | -21.93 | 104.70 | 54.33 | 243.74 | 0.8425 | 144.0 | 188.6 | |
| 0.00 | 1.19 | 0.00 | 1.07 | -21.20 | 104.13 | 53.77 | 244.42 | 0.8359 | -303.0 | -214.9 | |
| 0.00 | 2.04 | 0.00 | 1.93 | -23.63 | 105.43 | 55.07 | 242.01 | 0.8527 | 313.0 | 286.4 | |
| 0.00 | 0.94 | 0.00 | 0.85 | -21.83 | 104.26 | 53.89 | 243.72 | 0.8386 | -327.0 | -267.7 | |
| 2.73 | -4.00 | 2.54 | -4.00 | -23.53 | 105.09 | 54.72 | 242.02 | 0.8497 | -212.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.90 | -20.63 | 103.47 | 53.10 | 244.89 | 0.8287 | -538.0 | -381.3 | |
| 0.00 | 1.79 | 0.00 | 1.54 | -19.75 | 102.88 | 52.51 | 245.76 | 0.8212 | -526.0 | -425.0 | |
| 0.94 | 1.79 | 0.86 | 1.65 | -23.24 | 104.64 | 54.27 | 242.22 | 0.8452 | -229.4 | -286.8 | |
| 0.00 | 1.02 | 0.00 | 0.88 | -19.62 | 102.61 | 52.24 | 245.84 | 0.8185 | -588.0 | -529.1 | |
| 0.00 | 0.68 | 0.00 | 0.58 | -19.50 | 102.30 | 51.93 | 245.89 | 0.8153 | -671.0 | -601.8 | |
| 0.00 | 2.04 | 0.00 | 1.75 | -19.87 | 102.37 | 52.00 | 245.47 | 0.8169 | -592.0 | -515.9 | |
| 0.00 | 1.70 | 0.00 | 1.39 | -17.69 | 100.84 | 50.47 | 247.65 | 0.7968 | -477.0 | -371.2 | |
| 0.00 | 1.45 | 0.00 | 1.20 | -19.56 | 101.27 | 50.90 | 245.51 | 0.8058 | -544.0 | -407.2 | |
| 0.00 | 1.53 | 0.00 | 1.34 | -22.50 | 102.55 | 52.18 | 242.43 | 0.8255 | -490.0 | -424.6 | |
| 0.00 | 1.02 | 0.00 | 0.82 | -20.98 | 99.29 | 48.92 | 243.15 | 0.7911 | -478.0 | -471.4 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -22.76 | 98.75 | 48.39 | 240.81 | 0.7920 | -432.0 | -294.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
