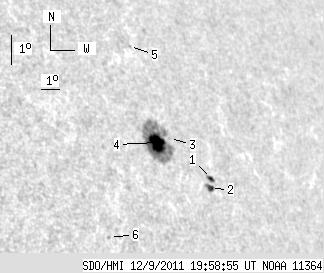

SDO HMI 2011-12-09 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.78 | 89.02 | 18.40 | 78.31 | 18.50 | 103.28 | 53.46 | 292.72 | 0.8282 | -411.6 | -217.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 4.09 | 1.96 | 3.77 | 17.51 | 105.50 | 55.69 | 291.01 | 0.8459 | 458.1 | 456.1 | |
| 2.81 | 4.94 | 2.58 | 4.53 | 17.20 | 105.30 | 55.49 | 290.70 | 0.8436 | 530.8 | 540.8 | |
| 0.00 | 0.94 | 0.00 | 0.83 | 18.75 | 103.80 | 53.99 | 292.88 | 0.8335 | 331.0 | 308.8 | |
| 15.84 | 77.00 | 13.86 | 67.44 | 18.62 | 103.06 | 53.24 | 292.92 | 0.8265 | -837.4 | -283.2 | |
| 0.00 | 1.11 | 0.00 | 0.99 | 21.65 | 103.13 | 53.31 | 296.44 | 0.8346 | -452.0 | -374.3 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 15.67 | 99.56 | 49.74 | 290.31 | 0.7858 | 653.0 | 522.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
