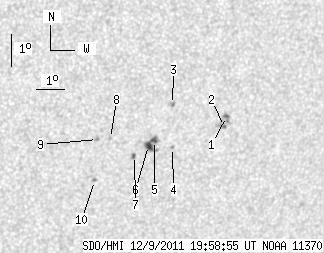

SDO HMI 2011-12-09 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.25 | 34.74 | 6.75 | 20.83 | -18.41 | 79.25 | 29.44 | 236.06 | 0.5642 | -312.1 | -4.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-09 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 10.39 | 0.99 | 6.33 | -17.78 | 81.24 | 31.43 | 238.62 | 0.5838 | 864.9 | 712.6 | |
| 1.28 | -1.00 | 0.78 | -1.00 | -18.09 | 81.23 | 31.42 | 238.14 | 0.5857 | 718.8 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.22 | -17.41 | 79.23 | 29.42 | 237.67 | 0.5568 | 921.0 | 750.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -18.74 | 79.48 | 29.66 | 235.78 | 0.5690 | -602.0 | -450.3 | |
| 2.73 | 13.80 | 1.63 | 8.23 | -18.52 | 78.79 | 28.98 | 235.55 | 0.5593 | -773.4 | -574.6 | |
| 4.09 | -5.00 | 2.44 | -5.00 | -18.68 | 78.61 | 28.79 | 235.15 | 0.5582 | -959.8 | 999999 | |
| 1.53 | 2.21 | 0.91 | 1.32 | -18.99 | 78.17 | 28.35 | 234.28 | 0.5553 | 608.1 | 715.1 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -18.46 | 77.23 | 27.41 | 234.27 | 0.5401 | -787.0 | -491.6 | |
| 0.00 | 1.87 | 0.00 | 1.10 | -18.49 | 76.78 | 26.96 | 233.81 | 0.5349 | -847.0 | -702.4 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -19.77 | 76.90 | 27.08 | 231.91 | 0.5465 | -720.0 | -583.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
