SDO HMI 2011-12-09 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.56 | 102.06 | 12.85 | 51.36 | 7.85 | 43.31 | -5.95 | 35.40 | 0.1755 | -9.8 | 8.8 | |
|
previous
or next observation for the same group /

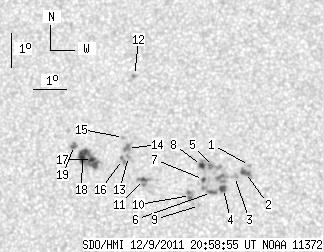

back to the solar disc SDO HMI 2011-12-09 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.60 | 7.94 | 45.97 | -3.29 | 21.95 | 0.1530 | -933.0 | -772.1 | |
| 4.26 | 5.62 | 2.13 | 2.82 | 7.73 | 45.85 | -3.41 | 23.20 | 0.1504 | -1066.3 | -811.3 | |
| 0.00 | 3.07 | 0.00 | 1.54 | 7.61 | 45.52 | -3.74 | 25.49 | 0.1509 | -1045.0 | -755.2 | |
| 3.58 | 21.47 | 1.79 | 10.75 | 7.25 | 45.20 | -4.06 | 28.52 | 0.1479 | -1145.4 | -930.9 | |
| 0.00 | 6.22 | 0.00 | 3.12 | 7.91 | 44.89 | -4.37 | 28.20 | 0.1604 | -900.0 | -851.5 | |
| 1.45 | -4.00 | 0.73 | -4.00 | 7.14 | 44.84 | -4.42 | 30.99 | 0.1492 | -875.3 | 999999 | |
| 1.53 | 1.79 | 0.77 | 0.90 | 7.52 | 44.60 | -4.66 | 31.02 | 0.1571 | -915.3 | -879.3 | |
| 2.56 | 5.45 | 1.28 | 2.74 | 7.94 | 44.54 | -4.73 | 30.03 | 0.1639 | -985.9 | -752.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.75 | 44.49 | -4.77 | 34.42 | 0.1469 | -731.0 | -572.1 | |
| 0.00 | 4.94 | 0.00 | 2.48 | 7.05 | 44.22 | -5.05 | 34.76 | 0.1538 | -789.0 | -850.6 | |
| 1.87 | 7.84 | 0.94 | 3.94 | 7.52 | 42.81 | -6.46 | 39.76 | 0.1751 | 1090.7 | 862.0 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 10.63 | 42.48 | -6.79 | 31.76 | 0.2216 | -975.0 | -787.8 | |
| 0.00 | 2.04 | 0.00 | 1.03 | 8.21 | 42.34 | -6.92 | 39.26 | 0.1892 | 1140.0 | 908.1 | |
| 0.00 | 5.03 | 0.00 | 2.54 | 8.45 | 42.31 | -6.95 | 38.60 | 0.1928 | 1085.0 | 993.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.78 | 42.18 | -7.08 | 38.04 | 0.1985 | 1049.0 | 785.5 | |
| 0.00 | 2.90 | 0.00 | 1.46 | 8.12 | 42.17 | -7.10 | 40.28 | 0.1900 | 1180.0 | 950.9 | |
| 2.81 | 26.41 | 1.42 | 13.35 | 8.12 | 41.26 | -8.00 | 43.67 | 0.2004 | 1290.0 | 936.5 | |
| 7.50 | -17.00 | 3.79 | -17.00 | 8.24 | 40.96 | -8.30 | 44.31 | 0.2055 | 992.1 | 999999 | |
| 0.00 | 3.58 | 0.00 | 1.81 | 8.54 | 40.71 | -8.55 | 44.14 | 0.2121 | 995.0 | 883.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
