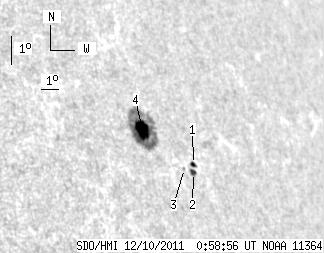

SDO HMI 2011-12-10 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.21 | 85.80 | 20.14 | 80.85 | 18.47 | 103.27 | 56.21 | 292.02 | 0.8524 | -400.2 | -194.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 3.32 | 2.11 | 3.30 | 17.51 | 105.44 | 58.39 | 290.44 | 0.8688 | 357.6 | 286.3 | |
| 2.98 | 3.24 | 2.95 | 3.20 | 17.26 | 105.32 | 58.26 | 290.18 | 0.8673 | 460.5 | 462.0 | |
| 0.00 | 1.36 | 0.00 | 1.33 | 17.38 | 104.85 | 57.79 | 290.42 | 0.8637 | 573.0 | 464.6 | |
| 16.10 | 77.88 | 15.08 | 73.02 | 18.59 | 103.05 | 55.99 | 292.20 | 0.8508 | -739.1 | -222.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
