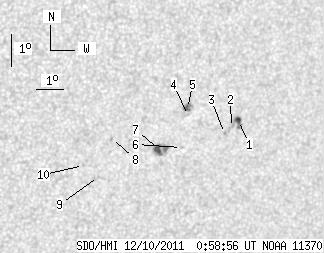

SDO HMI 2011-12-10 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.35 | 30.67 | 7.62 | 18.94 | -18.38 | 79.38 | 32.32 | 238.34 | 0.5983 | -1.8 | -0.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 5.45 | 1.77 | 3.43 | -17.93 | 81.37 | 34.31 | 240.37 | 0.6193 | 787.7 | 693.9 | |
| 0.00 | 2.30 | 0.00 | 1.45 | -18.15 | 81.15 | 34.10 | 239.92 | 0.6179 | 843.0 | 714.7 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -18.34 | 80.93 | 33.88 | 239.50 | 0.6164 | 684.0 | 577.1 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -17.78 | 79.48 | 32.42 | 239.36 | 0.5956 | 724.0 | 500.3 | |
| 3.66 | 5.28 | 2.25 | 3.24 | -17.56 | 79.39 | 32.34 | 239.64 | 0.5933 | 847.8 | 676.3 | |
| 0.00 | 1.19 | 0.00 | 0.74 | -18.77 | 79.43 | 32.37 | 237.83 | 0.6011 | -623.0 | -457.9 | |
| 5.88 | 11.08 | 3.60 | 6.80 | -18.84 | 78.59 | 31.54 | 237.13 | 0.5917 | -837.9 | -697.1 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -18.50 | 76.82 | 29.76 | 236.28 | 0.5682 | -643.0 | -580.7 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -19.68 | 76.59 | 29.53 | 234.27 | 0.5739 | -564.0 | -481.9 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -19.34 | 75.98 | 28.92 | 234.28 | 0.5643 | -733.0 | -619.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
