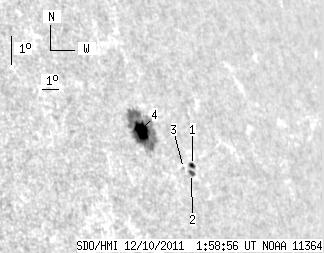

SDO HMI 2011-12-10 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.92 | 80.70 | 18.22 | 77.14 | 18.48 | 103.23 | 56.72 | 291.92 | 0.8568 | -403.9 | -190.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 3.32 | 2.15 | 3.35 | 17.51 | 105.45 | 58.94 | 290.33 | 0.8732 | 366.0 | 314.4 | |
| 2.47 | 2.90 | 2.48 | 2.90 | 17.26 | 105.26 | 58.75 | 290.09 | 0.8713 | 496.8 | 360.8 | |
| 0.00 | 1.02 | 0.00 | 1.01 | 17.41 | 104.86 | 58.35 | 290.34 | 0.8683 | 561.0 | 465.5 | |
| 14.32 | 73.46 | 13.59 | 69.88 | 18.59 | 103.02 | 56.51 | 292.09 | 0.8552 | -761.1 | -217.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
