SDO HMI 2011-12-10 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.10 | 113.76 | 13.59 | 56.99 | 7.85 | 43.81 | -2.15 | 13.90 | 0.1489 | 340.0 | -340.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

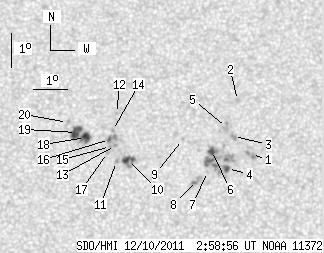

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.80 | 0.00 | 2.90 | 7.69 | 46.18 | 0.22 | 358.38 | 0.1384 | -773.0 | -877.9 | |
| 0.00 | 2.05 | 0.00 | 1.03 | 9.30 | 45.77 | -0.19 | 1.15 | 0.1663 | -647.0 | -507.7 | |
| 0.00 | 3.49 | 0.00 | 1.75 | 8.22 | 45.65 | -0.31 | 2.10 | 0.1478 | -914.0 | -776.9 | |
| 2.81 | 45.00 | 1.40 | 22.49 | 7.27 | 45.47 | -0.49 | 3.72 | 0.1314 | -1113.7 | -857.7 | |
| 0.00 | 4.94 | 0.00 | 2.48 | 8.49 | 45.44 | -0.52 | 3.39 | 0.1526 | -715.0 | -701.9 | |
| 3.92 | -4.00 | 1.96 | -4.00 | 7.81 | 44.99 | -0.97 | 6.82 | 0.1414 | -1025.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 7.18 | 44.88 | -1.08 | 8.29 | 0.1309 | -807.0 | -517.2 | |
| 0.00 | 4.77 | 0.00 | 2.38 | 6.91 | 44.55 | -1.41 | 11.12 | 0.1273 | -763.0 | -865.8 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 8.13 | 44.13 | -1.83 | 12.28 | 0.1495 | -730.0 | -614.3 | |
| 5.37 | 10.48 | 2.69 | 5.25 | 7.54 | 42.52 | -3.44 | 23.75 | 0.1483 | 1077.2 | 925.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.48 | 42.16 | -3.80 | 26.08 | 0.1500 | 931.0 | 730.5 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 8.91 | 42.15 | -3.81 | 22.46 | 0.1726 | 769.0 | 611.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 7.96 | 42.13 | -3.83 | 24.93 | 0.1577 | 1131.0 | 933.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 8.40 | 42.04 | -3.92 | 24.28 | 0.1654 | 897.0 | 686.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.93 | 41.98 | -3.98 | 25.86 | 0.1583 | 1023.0 | 854.1 | |
| 0.60 | 5.37 | 0.30 | 2.69 | 8.14 | 41.95 | -4.01 | 25.46 | 0.1618 | 1138.0 | 935.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.75 | 41.89 | -4.07 | 26.87 | 0.1562 | 830.0 | 699.8 | |
| 6.05 | 20.28 | 3.04 | 10.19 | 8.20 | 41.23 | -4.73 | 29.13 | 0.1684 | 1164.4 | 819.9 | |
| 8.35 | -18.00 | 4.20 | -18.00 | 8.34 | 40.96 | -5.00 | 30.06 | 0.1730 | 1028.7 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 8.64 | 40.69 | -5.27 | 30.52 | 0.1798 | 821.0 | 620.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
