SDO HMI 2011-12-10 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.38 | 186.30 | 15.39 | 101.43 | 18.14 | 61.92 | 16.51 | 319.48 | 0.4167 | -1103.2 | -431.5 | |
|
previous
or next observation for the same group /

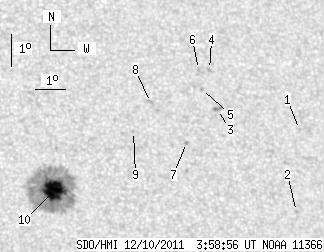

back to the solar disc SDO HMI 2011-12-10 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.59 | 19.84 | 69.87 | 24.45 | 311.36 | 0.5209 | -555.0 | -489.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 17.28 | 69.38 | 23.96 | 307.78 | 0.4927 | -757.0 | -544.2 | |
| 0.00 | 3.07 | 0.00 | 1.75 | 20.46 | 67.16 | 21.75 | 315.49 | 0.4972 | -899.0 | -710.5 | |
| 0.00 | 2.13 | 0.00 | 1.22 | 21.73 | 67.08 | 21.67 | 317.46 | 0.5094 | -668.0 | -543.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 21.09 | 66.71 | 21.30 | 317.00 | 0.4990 | -803.0 | -719.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 21.73 | 66.71 | 21.29 | 317.93 | 0.5055 | -669.0 | -559.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 19.42 | 65.97 | 20.55 | 315.43 | 0.4738 | -789.0 | -685.1 | |
| 0.00 | 3.58 | 0.00 | 2.01 | 20.68 | 64.93 | 19.52 | 318.77 | 0.4763 | -619.0 | -562.1 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 19.76 | 64.25 | 18.83 | 318.37 | 0.4592 | -742.0 | -562.0 | |
| 28.38 | 170.28 | 15.39 | 92.34 | 17.91 | 61.46 | 16.05 | 319.80 | 0.4093 | -1325.9 | -410.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
