SDO HMI 2011-12-10 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.13 | 342.01 | 46.20 | 291.87 | -17.23 | 352.72 | -52.70 | 111.14 | 0.8168 | 724.3 | 272.0 | |
|
previous
or next observation for the same group /

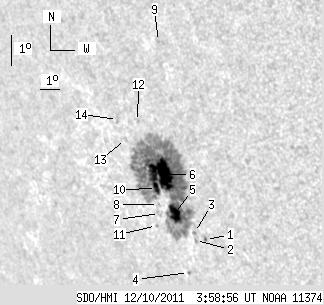

back to the solar disc SDO HMI 2011-12-10 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.85 | -18.95 | 354.12 | -51.30 | 113.59 | 0.8077 | -318.0 | -348.0 | |
| 0.00 | 1.62 | 0.00 | 1.37 | -18.98 | 353.60 | -51.81 | 113.48 | 0.8126 | 356.0 | 220.6 | |
| 0.00 | 1.53 | 0.00 | 1.29 | -18.73 | 353.66 | -51.76 | 113.20 | 0.8115 | 529.0 | 472.1 | |
| 0.00 | 1.11 | 0.00 | 0.96 | -19.98 | 352.78 | -52.64 | 114.44 | 0.8226 | -747.0 | -640.8 | |
| 11.68 | 326.16 | 9.98 | 278.21 | -18.14 | 352.89 | -52.52 | 112.28 | 0.8172 | 868.0 | 290.7 | |
| 38.61 | -5.00 | 32.91 | -5.00 | -16.93 | 352.73 | -52.68 | 110.79 | 0.8160 | 942.5 | 999999 | |
| 0.00 | 2.64 | 0.00 | 2.30 | -18.14 | 352.12 | -53.30 | 112.07 | 0.8244 | -217.0 | -141.3 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -17.86 | 352.19 | -53.23 | 111.76 | 0.8231 | 303.0 | 305.1 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -12.87 | 353.98 | -51.44 | 106.11 | 0.7957 | 58.0 | 43.7 | |
| 3.84 | -5.00 | 3.31 | -5.00 | -17.36 | 352.29 | -53.12 | 111.20 | 0.8211 | 474.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.97 | -18.51 | 351.79 | -53.62 | 112.43 | 0.8282 | 282.0 | 187.5 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -15.30 | 352.13 | -53.29 | 108.68 | 0.8185 | 372.0 | 270.0 | |
| 0.00 | 1.62 | 0.00 | 1.42 | -15.85 | 351.29 | -54.12 | 109.16 | 0.8274 | -274.0 | -216.5 | |
| 0.00 | 2.98 | 0.00 | 2.62 | -15.24 | 351.11 | -54.31 | 108.39 | 0.8280 | -169.0 | -220.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
