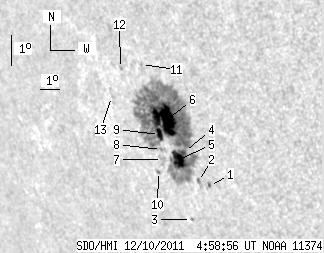

SDO HMI 2011-12-10 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.87 | 343.47 | 48.78 | 289.80 | -17.30 | 352.72 | -52.14 | 111.36 | 0.8118 | 729.9 | 262.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 2.30 | 0.70 | 1.90 | -18.96 | 354.11 | -50.75 | 113.76 | 0.8025 | -292.7 | -267.3 | |
| 0.00 | 2.56 | 0.00 | 2.13 | -18.84 | 353.62 | -51.25 | 113.46 | 0.8069 | 586.0 | 484.3 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -20.02 | 352.73 | -52.14 | 114.62 | 0.8182 | -689.0 | -586.8 | |
| 1.28 | 325.32 | 1.07 | 274.30 | -17.90 | 353.31 | -51.56 | 112.25 | 0.8075 | 601.7 | 281.1 | |
| 12.36 | -4.00 | 10.43 | -4.00 | -18.15 | 352.90 | -51.96 | 112.43 | 0.8120 | 896.5 | 999999 | |
| 38.10 | -4.00 | 32.08 | -4.00 | -16.94 | 352.74 | -52.13 | 110.93 | 0.8108 | 947.2 | 999999 | |
| 0.00 | 4.60 | 0.00 | 3.96 | -18.15 | 352.08 | -52.78 | 112.21 | 0.8196 | -205.0 | -126.9 | |
| 0.00 | 2.73 | 0.00 | 2.34 | -17.84 | 352.17 | -52.70 | 111.86 | 0.8182 | 333.0 | 225.6 | |
| 5.28 | -4.00 | 4.50 | -4.00 | -17.37 | 352.26 | -52.61 | 111.33 | 0.8163 | 467.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.56 | -18.52 | 351.71 | -53.15 | 112.56 | 0.8239 | 160.0 | 116.3 | |
| 0.00 | 1.19 | 0.00 | 1.01 | -15.22 | 352.17 | -52.69 | 108.71 | 0.8126 | 246.0 | 240.6 | |
| 0.00 | 1.19 | 0.00 | 1.04 | -15.34 | 351.05 | -53.82 | 108.61 | 0.8236 | -605.0 | -491.9 | |
| 0.00 | 0.85 | 0.00 | 0.76 | -16.19 | 350.23 | -54.63 | 109.45 | 0.8327 | -663.0 | -564.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
