SDO HMI 2011-12-10 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.10 | 172.59 | 14.79 | 94.41 | 18.11 | 61.76 | 17.44 | 317.91 | 0.4263 | -1155.3 | -454.1 | |
|
previous
or next observation for the same group /

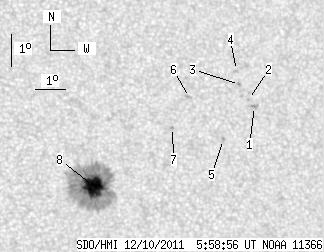

back to the solar disc SDO HMI 2011-12-10 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 1.62 | 20.45 | 67.12 | 22.80 | 314.21 | 0.5086 | -911.0 | -763.0 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 20.67 | 66.95 | 22.63 | 314.74 | 0.5089 | -707.0 | -448.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 21.14 | 66.72 | 22.40 | 315.73 | 0.5111 | -864.0 | -731.6 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 21.59 | 66.69 | 22.37 | 316.41 | 0.5153 | -833.0 | -653.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 19.41 | 65.91 | 21.59 | 314.08 | 0.4852 | -780.0 | -621.1 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 20.73 | 64.95 | 20.63 | 317.35 | 0.4885 | -578.0 | -539.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 19.78 | 64.25 | 19.93 | 316.86 | 0.4711 | -823.0 | -608.8 | |
| 27.10 | 161.51 | 14.79 | 88.08 | 17.93 | 61.44 | 17.12 | 318.08 | 0.4210 | -1330.5 | -437.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
