SDO HMI 2011-12-10 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.75 | 23.87 | 6.85 | 15.24 | -18.43 | 79.58 | 35.26 | 240.24 | 0.6331 | -114.7 | 94.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

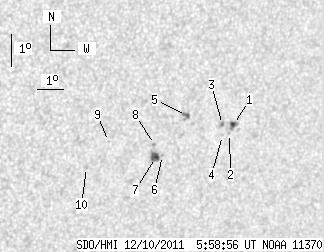

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.22 | 5.54 | 1.44 | 3.61 | -17.96 | 81.45 | 37.13 | 242.01 | 0.6525 | 732.4 | 591.7 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -18.24 | 81.36 | 37.04 | 241.57 | 0.6529 | 535.0 | 420.8 | |
| 0.00 | 1.28 | 0.00 | 0.83 | -17.96 | 81.02 | 36.70 | 241.78 | 0.6475 | 872.0 | 734.3 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -18.31 | 81.10 | 36.78 | 241.34 | 0.6502 | 655.0 | 553.1 | |
| 2.39 | 3.66 | 1.52 | 2.33 | -17.69 | 79.57 | 35.25 | 241.35 | 0.6289 | 785.1 | 703.5 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -18.93 | 78.95 | 34.63 | 239.15 | 0.6284 | -575.0 | -477.0 | |
| 6.14 | 7.50 | 3.89 | 4.75 | -19.00 | 78.70 | 34.38 | 238.90 | 0.6258 | -805.2 | -616.8 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -18.59 | 78.56 | 34.24 | 239.40 | 0.6219 | -783.0 | -683.2 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -18.50 | 76.83 | 32.50 | 238.38 | 0.6007 | -565.0 | -522.4 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -19.31 | 76.19 | 31.87 | 236.71 | 0.5983 | -843.0 | -646.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
