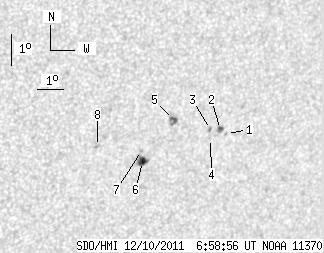

SDO HMI 2011-12-10 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.38 | 23.01 | 6.03 | 14.79 | -18.34 | 79.67 | 35.89 | 240.75 | 0.6400 | -2.9 | 184.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.73 | -18.12 | 81.73 | 37.95 | 242.24 | 0.6629 | 487.0 | 352.0 | |
| 2.39 | 3.75 | 1.57 | 2.46 | -18.00 | 81.46 | 37.68 | 242.27 | 0.6592 | 746.1 | 770.2 | |
| 0.00 | 1.70 | 0.00 | 1.11 | -18.00 | 81.07 | 37.29 | 242.06 | 0.6546 | 823.0 | 722.3 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -18.28 | 81.14 | 37.36 | 241.70 | 0.6568 | 641.0 | 503.1 | |
| 1.79 | 5.54 | 1.15 | 3.54 | -17.69 | 79.56 | 35.79 | 241.66 | 0.6353 | 823.4 | 646.9 | |
| 5.20 | 8.01 | 3.31 | 5.11 | -19.00 | 78.69 | 34.91 | 239.24 | 0.6320 | -801.7 | -633.3 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -18.66 | 78.57 | 34.79 | 239.66 | 0.6287 | -804.0 | -675.9 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -18.54 | 76.88 | 33.11 | 238.74 | 0.6081 | -644.0 | -428.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
