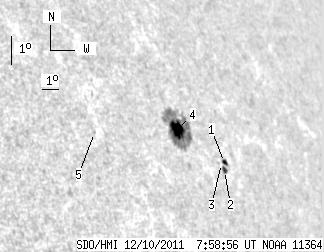

SDO HMI 2011-12-10 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.71 | 78.06 | 17.72 | 81.76 | 18.44 | 103.16 | 59.93 | 291.21 | 0.8825 | -344.0 | -150.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 3.15 | 2.29 | 3.53 | 17.53 | 105.43 | 62.19 | 289.78 | 0.8982 | 333.3 | 110.6 | |
| 2.47 | 3.24 | 2.75 | 3.60 | 17.28 | 105.28 | 62.04 | 289.53 | 0.8968 | 432.5 | 350.4 | |
| 0.00 | 0.77 | 0.00 | 0.85 | 17.50 | 105.21 | 61.97 | 289.78 | 0.8965 | 422.0 | 471.9 | |
| 12.19 | 69.88 | 12.68 | 72.85 | 18.55 | 102.99 | 59.76 | 291.36 | 0.8814 | -749.3 | -179.9 | |
| 0.00 | 1.02 | 0.00 | 0.93 | 18.43 | 98.11 | 54.87 | 292.32 | 0.8410 | 343.0 | 360.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
