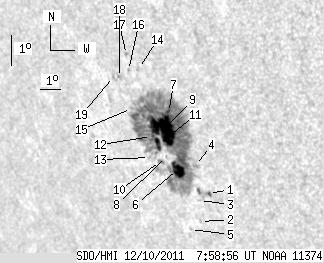

SDO HMI 2011-12-10 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.27 | 365.36 | 49.91 | 297.56 | -17.23 | 352.66 | -50.58 | 111.69 | 0.7963 | 646.9 | 257.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 7.76 | 0.88 | 6.23 | -18.91 | 354.06 | -49.18 | 114.17 | 0.7869 | -390.5 | 222.9 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -19.79 | 353.31 | -49.93 | 115.00 | 0.7967 | -664.0 | -619.9 | |
| 0.00 | 0.85 | 0.00 | 0.69 | -19.13 | 353.53 | -49.70 | 114.27 | 0.7927 | 363.0 | 287.6 | |
| 0.00 | 3.24 | 0.00 | 2.59 | -18.04 | 353.77 | -49.46 | 113.01 | 0.7873 | 348.0 | 350.2 | |
| 0.00 | 0.51 | 0.00 | 0.42 | -20.04 | 352.70 | -50.53 | 115.11 | 0.8032 | -710.0 | -579.0 | |
| 12.44 | 338.77 | 10.14 | 275.86 | -18.16 | 352.85 | -50.38 | 112.88 | 0.7967 | 917.7 | 276.4 | |
| 0.77 | -6.00 | 0.62 | -6.00 | -16.40 | 353.08 | -50.15 | 110.78 | 0.7901 | 957.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -17.76 | 352.47 | -50.76 | 112.28 | 0.7994 | 395.0 | 362.9 | |
| 41.16 | -6.00 | 33.50 | -6.00 | -16.92 | 352.65 | -50.59 | 111.30 | 0.7956 | 912.7 | 999999 | |
| 0.00 | 2.81 | 0.00 | 2.33 | -17.91 | 352.11 | -51.12 | 112.36 | 0.8032 | 414.0 | 339.8 | |
| 5.11 | -6.00 | 4.21 | -6.00 | -17.38 | 352.22 | -51.01 | 111.75 | 0.8009 | 491.1 | 999999 | |
| 0.68 | -6.00 | 0.56 | -6.00 | -17.13 | 351.97 | -51.26 | 111.38 | 0.8027 | 244.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.85 | -17.78 | 351.62 | -51.62 | 112.08 | 0.8077 | -278.0 | -267.5 | |
| 0.00 | 1.87 | 0.00 | 1.53 | -15.04 | 352.09 | -51.14 | 108.85 | 0.7969 | 96.0 | 174.0 | |
| 0.00 | 1.19 | 0.00 | 1.00 | -16.27 | 351.31 | -51.93 | 110.16 | 0.8073 | -376.0 | -357.9 | |
| 0.00 | 1.02 | 0.00 | 0.84 | -15.10 | 351.57 | -51.66 | 108.80 | 0.8022 | 516.0 | 422.0 | |
| 0.00 | 1.45 | 0.00 | 1.19 | -14.61 | 351.64 | -51.59 | 108.22 | 0.8005 | -530.0 | -395.4 | |
| 0.00 | 2.05 | 0.00 | 1.71 | -15.32 | 351.05 | -52.18 | 108.94 | 0.8077 | -543.0 | -397.0 | |
| 0.00 | 1.11 | 0.00 | 0.93 | -15.29 | 350.76 | -52.47 | 108.83 | 0.8105 | -669.0 | -575.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
