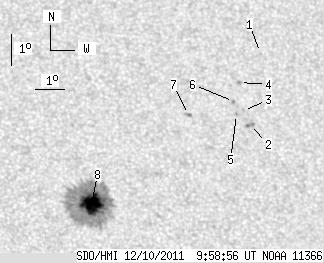

SDO HMI 2011-12-10 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.46 | 177.24 | 13.51 | 98.25 | 18.15 | 61.76 | 19.62 | 314.73 | 0.4507 | -1124.9 | -448.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.31 | 22.76 | 67.93 | 25.79 | 314.25 | 0.5623 | -512.0 | -455.2 | |
| 0.00 | 3.32 | 0.00 | 1.94 | 20.47 | 67.15 | 25.00 | 311.77 | 0.5331 | -821.0 | -759.3 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 20.91 | 66.98 | 24.84 | 312.61 | 0.5353 | -601.0 | -537.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 21.80 | 67.00 | 24.86 | 313.88 | 0.5437 | -784.0 | -599.5 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 20.78 | 66.71 | 24.57 | 312.71 | 0.5312 | -785.0 | -678.3 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 21.19 | 66.68 | 24.54 | 313.35 | 0.5347 | -790.0 | -652.2 | |
| 0.00 | 2.47 | 0.00 | 1.42 | 20.78 | 65.06 | 22.91 | 314.59 | 0.5132 | -794.0 | -603.8 | |
| 24.46 | 165.91 | 13.51 | 91.63 | 17.95 | 61.41 | 19.27 | 314.85 | 0.4448 | -1331.2 | -431.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
